Big compute,
studio footprint.

From first model to final render.

Atom

The production workhorse.

Atom brings Threadripper power to serious production work. Up to two GPUs handle GPU rendering, simulation and creative AI. Strong cooling sustains long sessions without throttling. ECC memory support helps protect heavy projects and long jobs. Flexible high-speed storage keeps caches and assets moving. Atom suits artists and teams who need workstation-class compute that can scale. It stays quiet, stable and easy to service, for daily work and deadlines alike.

CONFIGURE Help Me Choose
CPU icon
1
CPU
RAM (Slots) icon
4 + 4*
RAM (Slots)
PCIe slots (16x) icon
4 + 2*
PCIe slots (16x)
NVMe M.2 Drives (Gen 5) icon
4
NVMe M.2 Drives (Gen 5)
U.2 Drives icon
2
U.2 Drives
1
Front drive bay
PCIe slots (8x) icon
1*
PCIe slot (8x)

* With the ASUS Pro WS WRX90E-SAGE SE motherboard. The standard Gigabyte TRX50 AI TOP has fewer.

Internal view of Renderboxes Atom Workstation showing GPU

Dual GPU
Dominance

Takes up to two full-size GPUs and a liquid-cooled Threadripper. Servicing is tool-less.

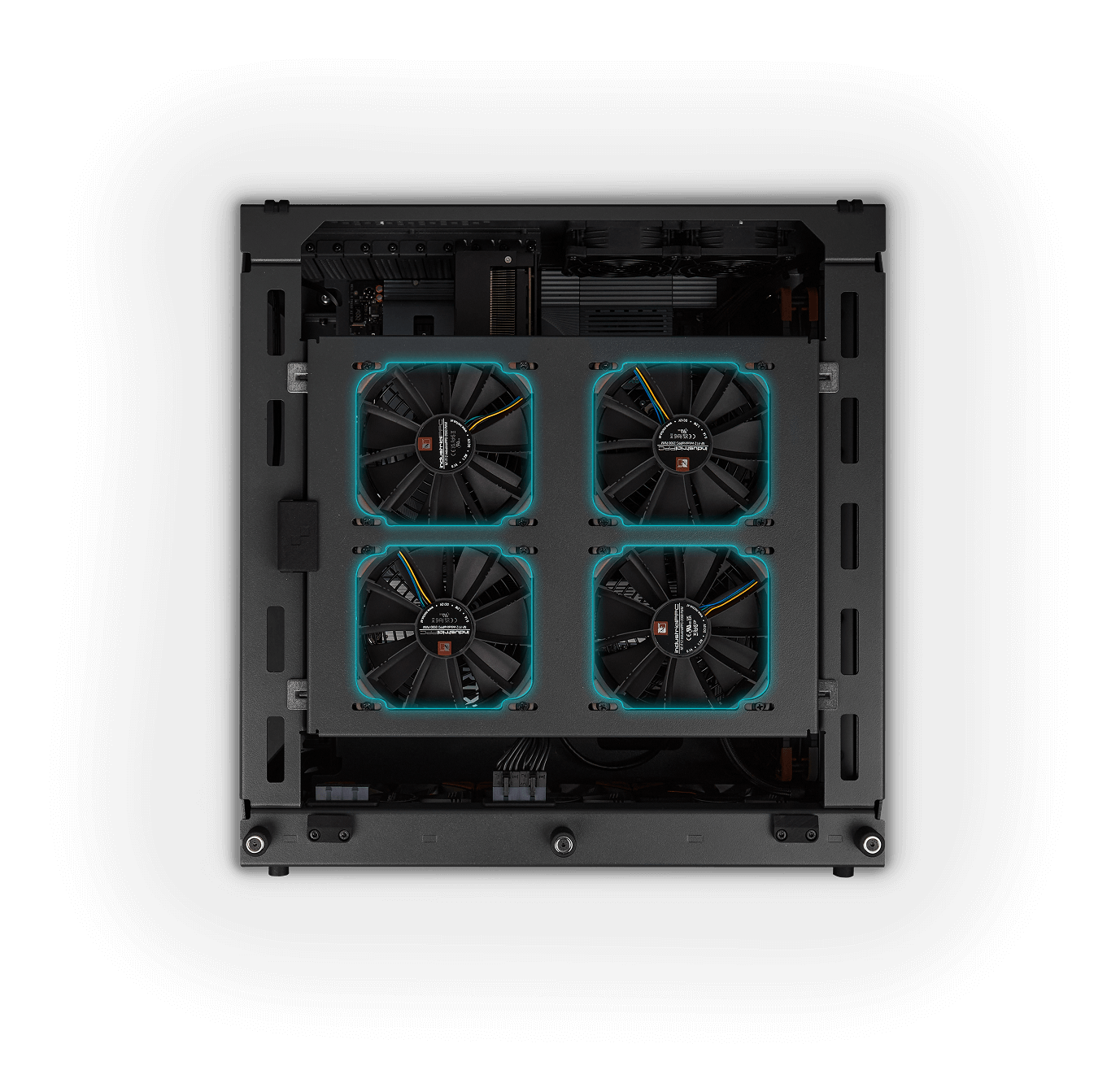

Renderboxes Atom Workstation Internal view showing airflow

Precision Airflow Engineering

Front and top fan arrays direct airflow for efficient, low-noise cooling under sustained load.

Overview

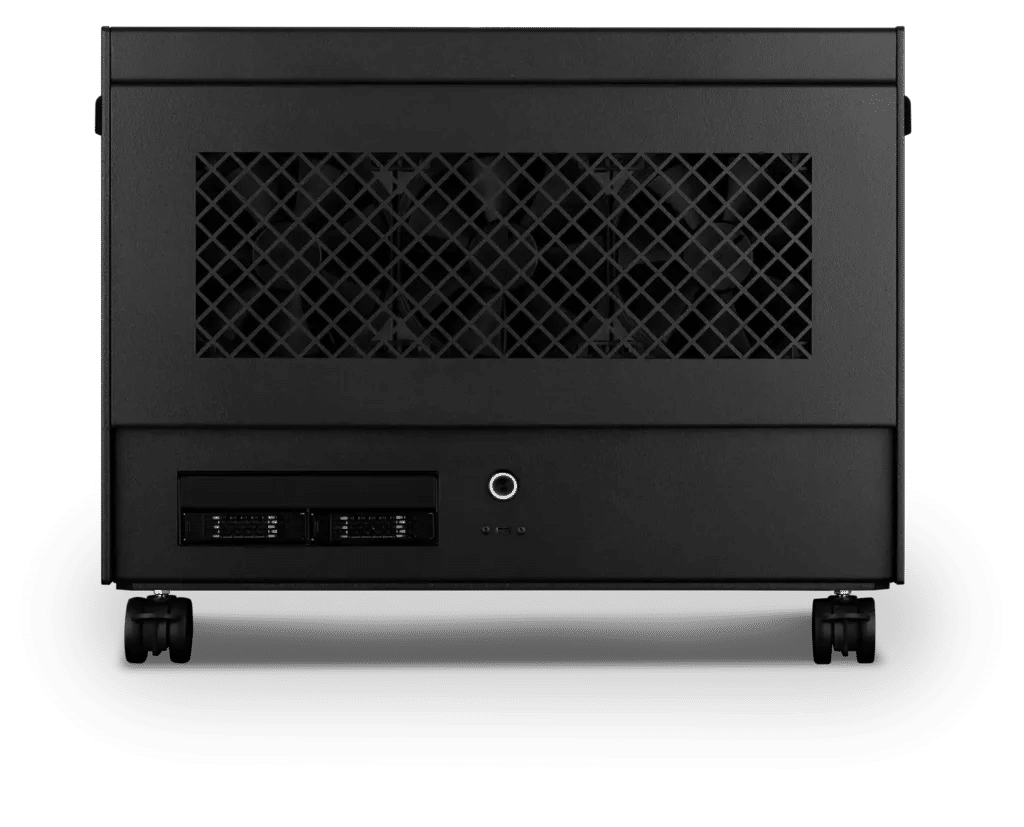

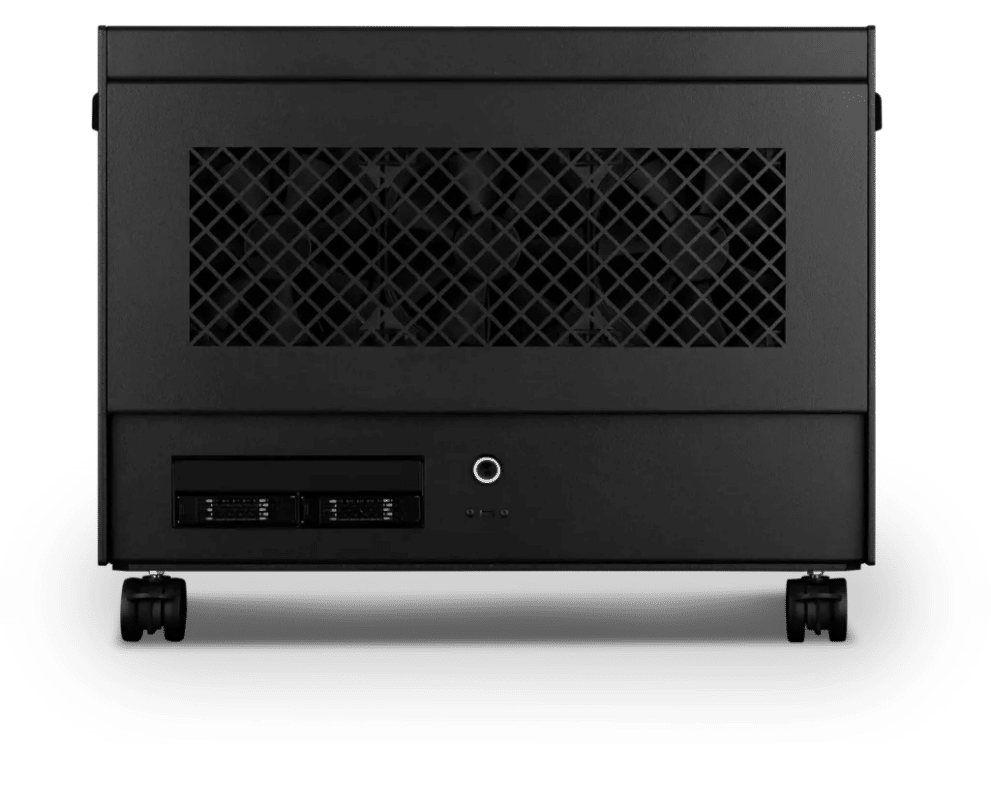

Front on view of Renderboxes Atom Workstation
View gallery

Overview

  • Dimensions (W × H × D): 45 cm (49 cm with handles) × 37 × 47.5 cm
  • Weight: 30kg (47kg in shipping crate)

Technical

  • CPU icon
    AMD Threadripper / Threadripper PRO 9000 Series
  • GPU icon
    NVIDIA RTX (Multi GPU Max 4x)
  • Storage icon
    NVMe Gen 5 M.2 (Max 3x) / U.2 (Max 2x)
  • RAM icon
    DDR5 ECC (Max 2.0TB)
  • Cooling System icon
    Air/AIO
Configure your Atom Help Me Choose

Primary use

The Atom is a compact, high-performance workstation engineered to deliver exceptional GPU compute in an impressively small desk-side format. Powered by AMD Ryzen Threadripper technology and built to support up to 2 x NVIDIA GeForce RTX 5090 GPUs, it offers an extraordinary balance of size, power, and expandability for demanding creative and technical workloads.

Designed around our advanced airflow architecture, the Atom is built to maintain stable, reliable performance even under sustained load. Its compact footprint makes it ideal for studios and professionals who need serious rendering, AI, simulation, or content creation performance without committing to a large tower or rackmount system. With carefully considered expansion and workstation-grade engineering throughout, the Atom is built to stay ahead of the curve while fitting seamlessly into modern production environments.

Atom
Atom

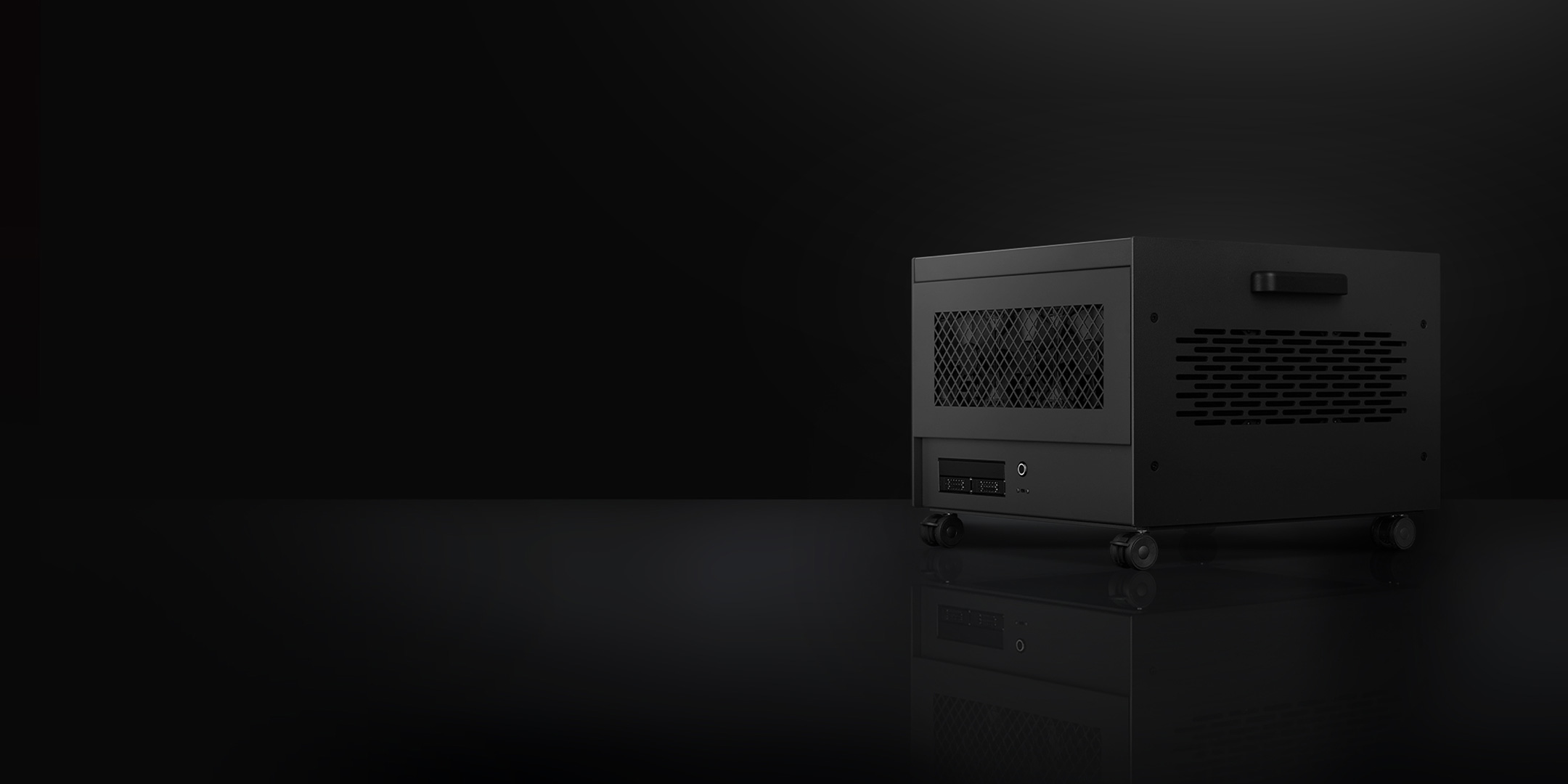

Angled view of Renderboxes Atom Workstation
Rear view of Renderboxes Atom Workstation
Renderboxes Atom Workstation
Internal view of Renderboxes Atom Workstation showing GPU
Internal view of Renderboxes Atom Workstation showing cooling fans

CPU, with Gigabyte TRX50 AI TOP

  • AMD Threadripper 9980X — 3.2 GHz / up to 5.4 GHz
  • AMD Threadripper 9970X — 4.0 GHz / up to 5.4 GHz
  • AMD Threadripper 9960X — 4.2 GHz / up to 5.4 GHz

CPU, with ASUS Pro WS WRX90E-SAGE SE

  • AMD Threadripper PRO 9995WX — 2.5 GHz / up to 5.4 GHz
  • AMD Threadripper PRO 9985WX — 3.2 GHz / up to 5.4 GHz
  • AMD Threadripper PRO 9975WX — 4.0 GHz / up to 5.4 GHz
  • AMD Threadripper PRO 9965WX — 4.2 GHz / up to 5.4 GHz

GPU, with Gigabyte TRX50 AI TOP

  • 2x Full Length PCIe GPU (maximum 4 slot wide, 600 W)

GPU, with ASUS Pro WS WRX90E-SAGE SE

  • 4x Full Length PCIe GPU (maximum two dual-slot or wider)

Memory, with Gigabyte TRX50 AI TOP

  • 4x DDR5 ECC RDIMM Slots (4 channels) for maximum of 1.0TB

Memory, with ASUS Pro WS WRX90E-SAGE SE

  • 8x DDR5 ECC RDIMM Slots (8 channels) for maximum of 2.0TB

Expansion, with Gigabyte TRX50 AI TOP

  • 4x PCIe 5.0 x16

Expansion, with ASUS Pro WS WRX90E-SAGE SE

  • 6x PCIe 5.0 x16
  • 1x PCIe 5.0 x8

Storage

  • 2x x4 U.2 Gen 4.0
  • 3x x4 M.2 Gen 5.0

System Cooling

  • 10x Noctua Industrial 120mm
  • 2x Noctua Cromax 80mm
  • 360mm All in one liquid cooler CPU

Connectivity, with Gigabyte TRX50 AI TOP

  • 6x USB 3.2 Gen 2 Type-A ports
  • 2x USB4/TB Type-C ports
  • 2x 10GbE LAN
  • 1x USB-C 20Gbps port

Connectivity, with ASUS Pro WS WRX90E-SAGE SE

  • 6x USB 3.2 Gen 2 Type-A ports
  • 2x USB4/TB Type-C ports
  • 2x 10GbE LAN
  • 1x 1GbE IPMI Management LAN
  • 1x USB-C 20Gbps port

Dimensions + Weight

  • W × H × D: 45 cm (49 cm with handles) × 37 × 47.5 cm
  • Weight: 30kg (47kg in shipping crate)

Power Supply

  • 2x 1200 watts Platinum SFX

Warranty

  • 3 years on all parts
  • 1 year return to base on all labour
  • 3 years technical support via remote/email/telephone
Front view of the Photon Workstation, with a mesh grill and handle on top.

Photon
  • AMD Ryzen 9000 Series
  • NVIDIA RTX PRO / AMD Radeon AI PRO (Max 1x)
  • NVMe Gen 5/4 M.2 (Max 2x)
  • DDR5 (Max 256GB)
  • Air/AIO
BUILD YOUR WORKSTATION
Renderboxes Atom Workstation

Atom
  • AMD Threadripper / Threadripper PRO 9000 Series
  • NVIDIA RTX (Multi GPU Max 4x)
  • NVMe Gen 5 M.2 (Max 3x) / U.2 (Max 2x)
  • DDR5 ECC (Max 2.0TB)
  • Air/AIO
BUILD YOUR WORKSTATION
Front view of the Molecule Air Workstation

Molecule Air
  • Dual AMD EPYC 9005 Turin Series
  • NVIDIA RTX PRO (Multi GPU Max 8x)
  • NVMe Gen 4/5 M.2 / U.2 (Max 4x)
  • DDR5 ECC (Max 3.0TB)
  • Air/AIO
BUILD YOUR WORKSTATION
Renderboxes Electron Workstation

Electron
  • AMD Ryzen 9000 Series
  • NVIDIA RTX (Max 1x)
  • NVMe Gen 5 M.2 (Max 2x) / U.2 (Max 1x)
  • DDR5 (Max 256GB)
  • Air/AIO
BUILD YOUR WORKSTATION
Front view of Renderboxes Nano Pro Workstation

Nano Pro
  • AMD Threadripper PRO 9000 Series
  • NVIDIA RTX (Multi GPU Max 4x)
  • NVMe Gen 4/5 M.2 / U.2 (Max 2x Hotswap)
  • DDR5 ECC (Max 2.0TB)
  • Air/AIO
BUILD YOUR WORKSTATION
Front view of Renderboxes Atom Rack Workstation

Atom Rack
  • AMD Threadripper / Threadripper PRO 9000 Series
  • NVIDIA RTX (Multi GPU Max 4x)
  • NVMe Gen 5 M.2 / U.2 (Max 2x)
  • DDR5 ECC (Max 2.0TB)
  • Air/AIO
BUILD YOUR WORKSTATION

Modern production needs CPU and GPU power. Some shots need CPU muscle. Others need GPU speed. Most need both, and they need them now. Atom handles both, so you don’t have to choose. Great work doesn’t fit neatly into render engine categories. It just needs to get done well and on time.

Configure

Configure your Atom, or talk to our team about building the right system for the way you work.

Configure BOOK A CALL
