iodyne storage and cables
Pro Data, Pro Mini and Pro Cables for Renderboxes workstations.
- 1iodyne's maximum, using multiple Thunderbolt paths; up to 2.4 GB/s write. Renderboxes systems with USB4 or Thunderbolt have two ports.
- 2iodyne figure, per Pro Data device.
- 3iodyne figure, offloading from Pro Data to backup or other storage.
- 4iodyne figure, compared with a 10 GbE network share.
Fast, protected Thunderbolt storage

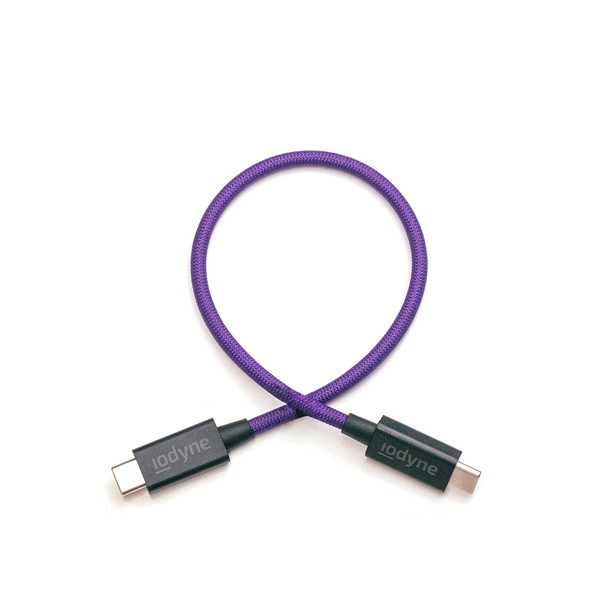

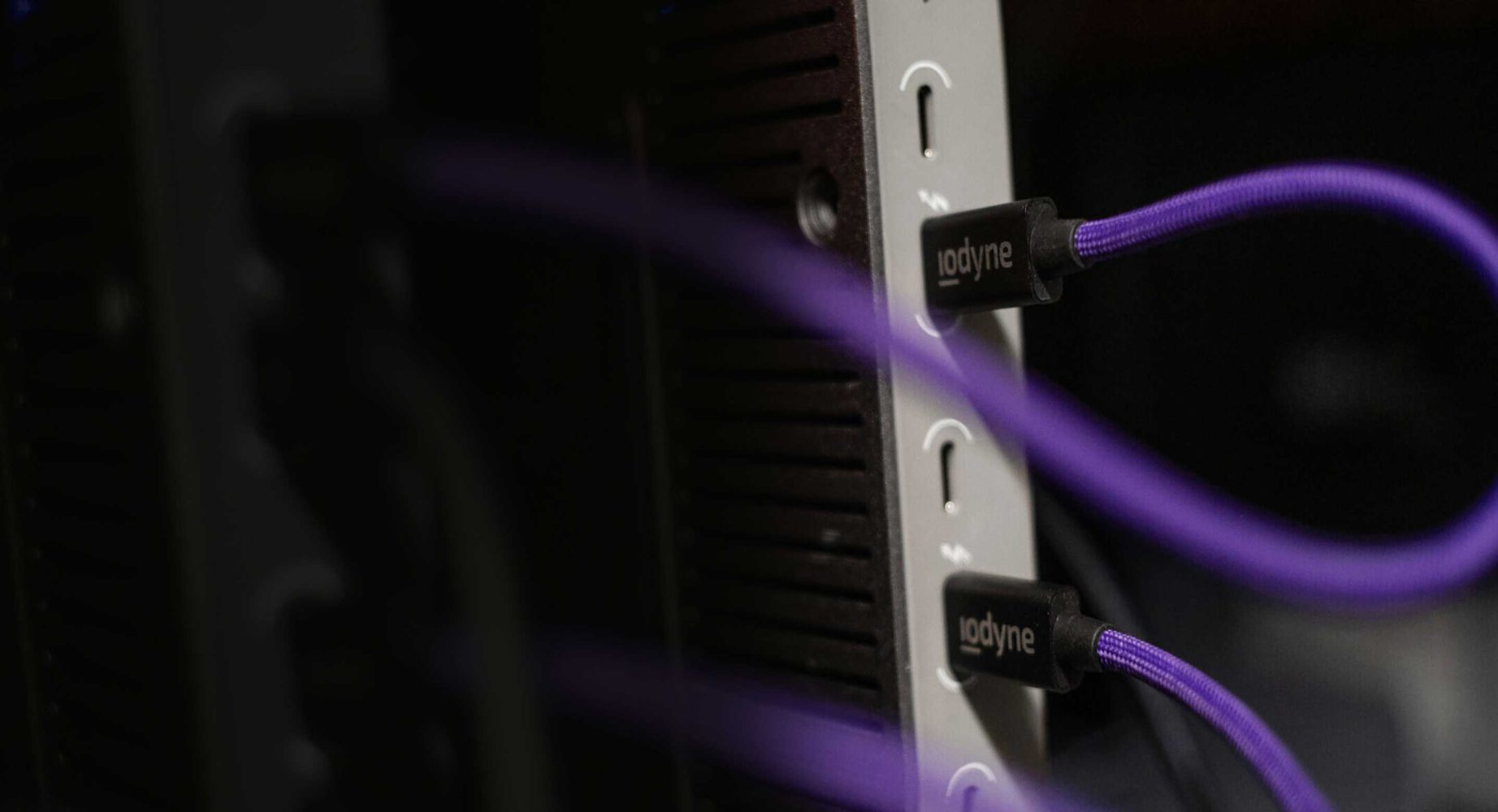

Pro Data is shared RAID storage for the studio, with up to 192 TB, four computers at once and RAID-6 with encryption. Pro Mini is a 4 or 8 TB smart drive for the pocket. Pro Cables carry the full 40 Gb/s.
How iodyne works with Renderboxes systems: multipathing, performance and set-up
Shop iodyne
Pro Data or Pro Mini

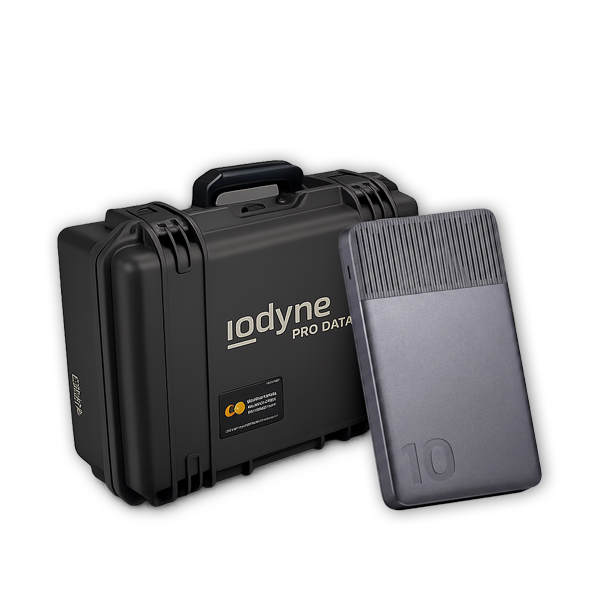

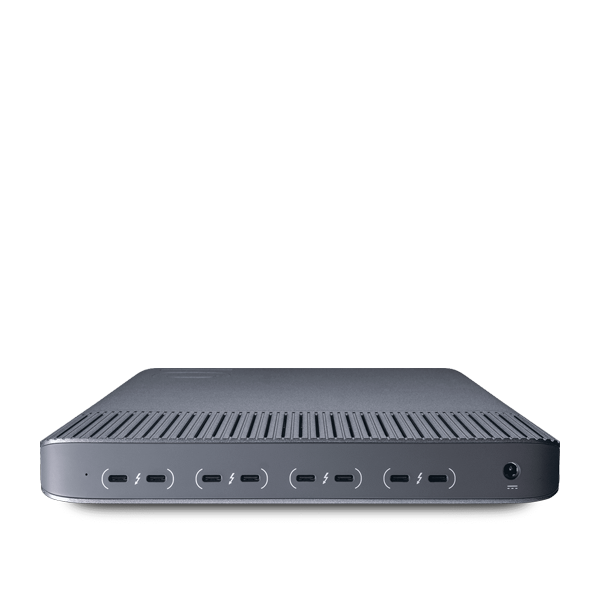

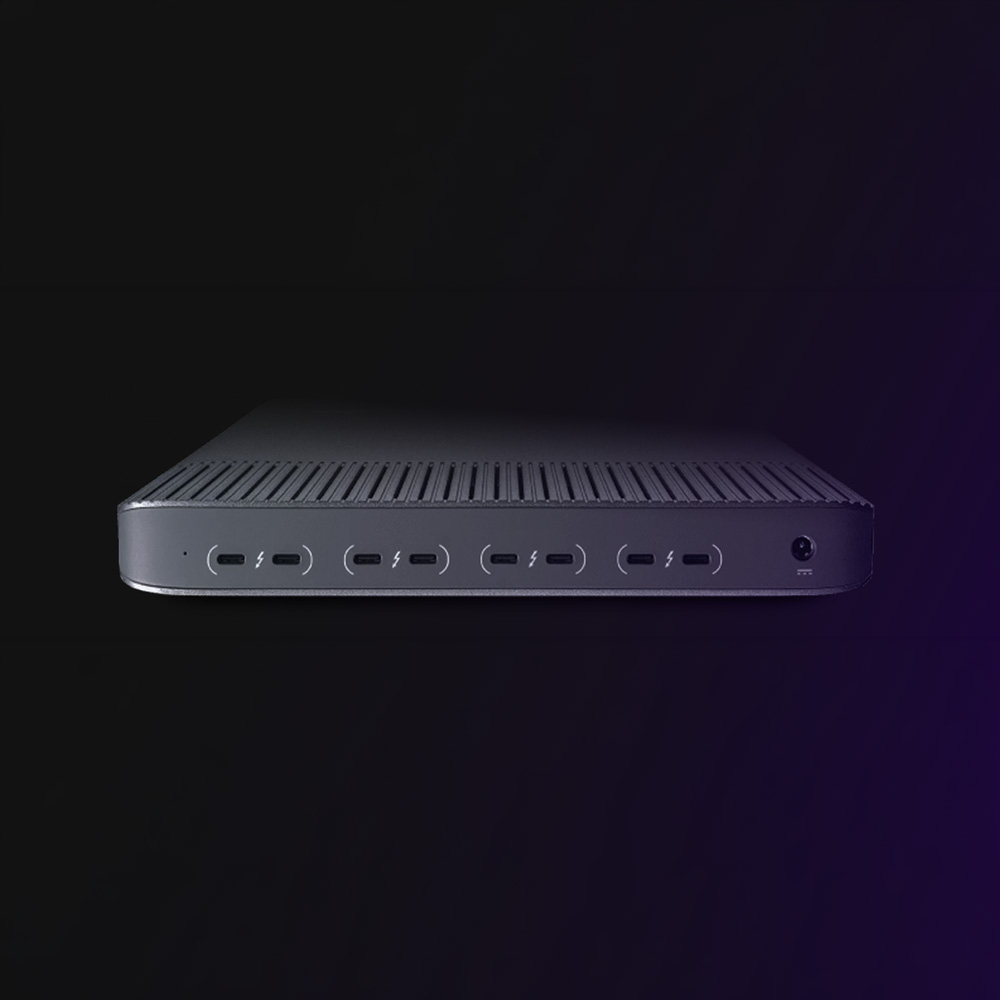

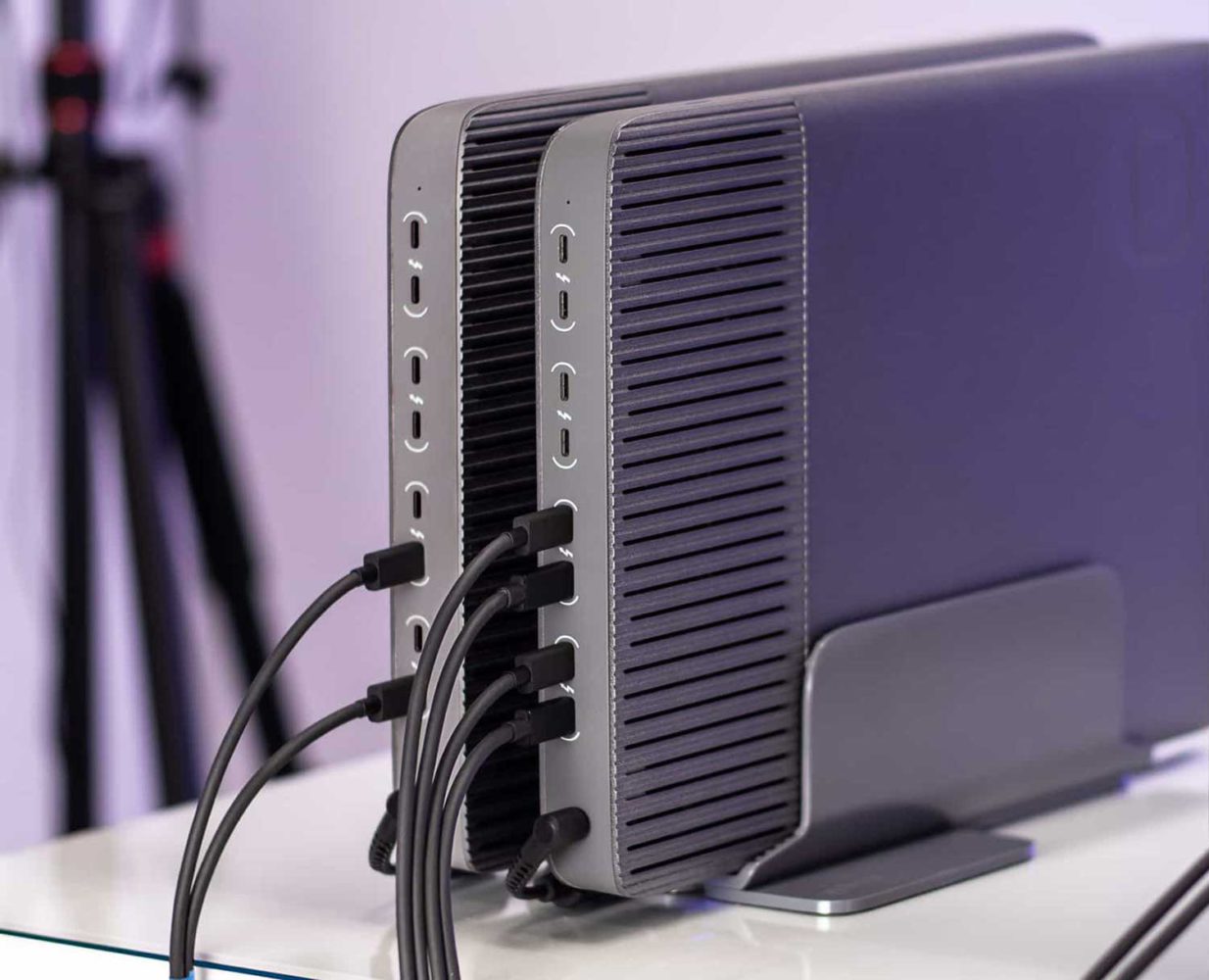

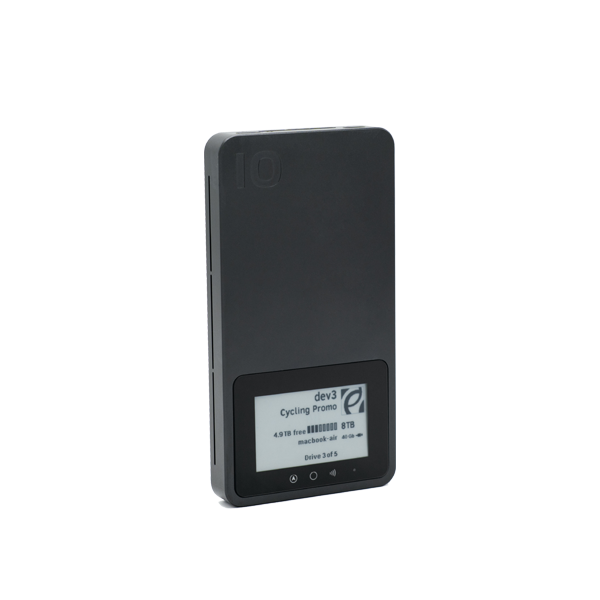

Pro Data is a shared, expandable RAID system for the studio or the set. Pro Mini is a bus-powered pocket drive for carrying projects between machines and sites.
| Pro Data | Pro Mini | |
|---|---|---|
| Capacity | 12, 24, 48, 96 or 192 TB | 4 or 8 TB |
| Usable with RAID-6 | 10, 20, 40, 80 or 160 TB | Full capacity |
| Speed | Up to 5.2 GB/s read, 2.4 GB/s write | 40 Gb/s USB4 or Thunderbolt |
| Connection | 8 × 40 Gb Thunderbolt ports (4 upstream, 4 downstream) | One 40 Gb USB-C port; also works on USB2, USB3 and USB4 |
| Computers at once | Up to 4 | 1 |
| Expansion | Daisy-chain up to 6 per port pair, up to 6.9 PB | — |
| Operating systems | macOS 13+, Windows 10 (21H2) and 11 (22H2+), Ubuntu 22.04+ (kernel 6.8 or later) | macOS 13+, Windows 10 (21H2) and 11 (22H2+), Ubuntu 22.04+ (kernel 6.8 or later) |
| Protection | RAID-6 or RAID-0, checksums and self-healing, XTS-AES-256 encryption | RAID-6, checksums and self-healing, XTS-AES-256 encryption, IP54, 36-inch drop resistant |
| Power | 180 W adapter | USB bus power (7.5 W or 15 W) |
| Size and weight | 39.1 × 25.4 × 3.1 cm, 3.3 kg | 131 × 69 × 13 mm, 231 g |
| Warranty | 1 year, 3 years when registered with iodyne Cloud; free replacement SSD modules in warranty | 1 year, 3 years when registered with iodyne Cloud |
Downloads and set-up
Datasheets, software and guides from iodyne.
- Pro Data datasheet (PDF, iodyne.com)
- Pro Mini datasheet (PDF, iodyne.com)
- iodyne software for Mac and Windows (download page, iodyne.com)
- Linux start-up guide (guide, iodyne.com)
- Multi-camera ISO recording with Softron (PDF, iodyne.com)
- RED Connect workflow (PDF, iodyne.com)
- Pro Cables specifications (web page, iodyne.com)
- Warranty terms (web page, iodyne.com)
