Electron Configure

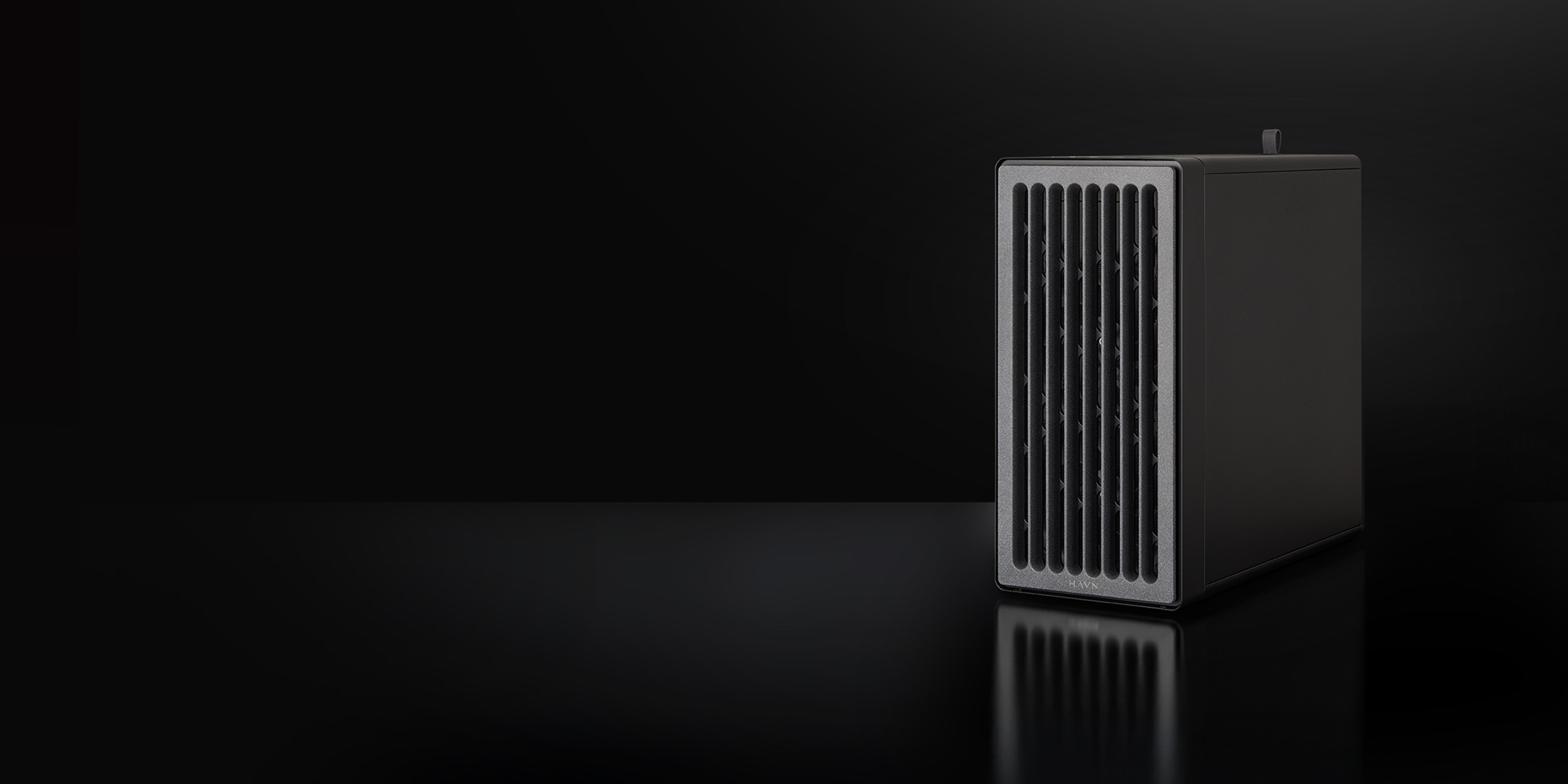

Wide angled front view of Renderboxes Electron Workstation

Fast cores
+
Faster workflow

Electron, Built to keep you in flow.

Electron

Immense clock speed. Immediate performance

Electron is a compact desktop for interactive apps, where responsiveness matters more than core count. Its Ryzen 9 boosts beyond 5.7GHz. That gives a fast, responsive feel in After Effects, Premiere, Resolve, Photoshop, Unreal and more. Fast storage and high-bandwidth DDR5 keep projects moving. Quiet cooling and clean airflow hold performance under sustained load. It’s an everyday workstation that makes creative work feel instant.

Configure Help Me Choose
CPU icon
1
CPU
RAM (Slots) icon
4
RAM (Slots)
PCIe slots (16x) icon
1
PCIe slot (16x)
PCIe slots (8x) icon
1
PCIe slot (8x)
NVMe M.2 Drives (Gen 5) icon
2
NVMe M.2 Drives (Gen 5)
NVMe M.2 Drives (Gen 4) icon
1
NVMe M.2 Drive (Gen 4)
Renderboxes Electron Workstation highlighting GPU

Built for
Stability

Electron supports all major GPU form factors. A custom CPU AIO liquid cooler keeps it stable under sustained heavy loads.

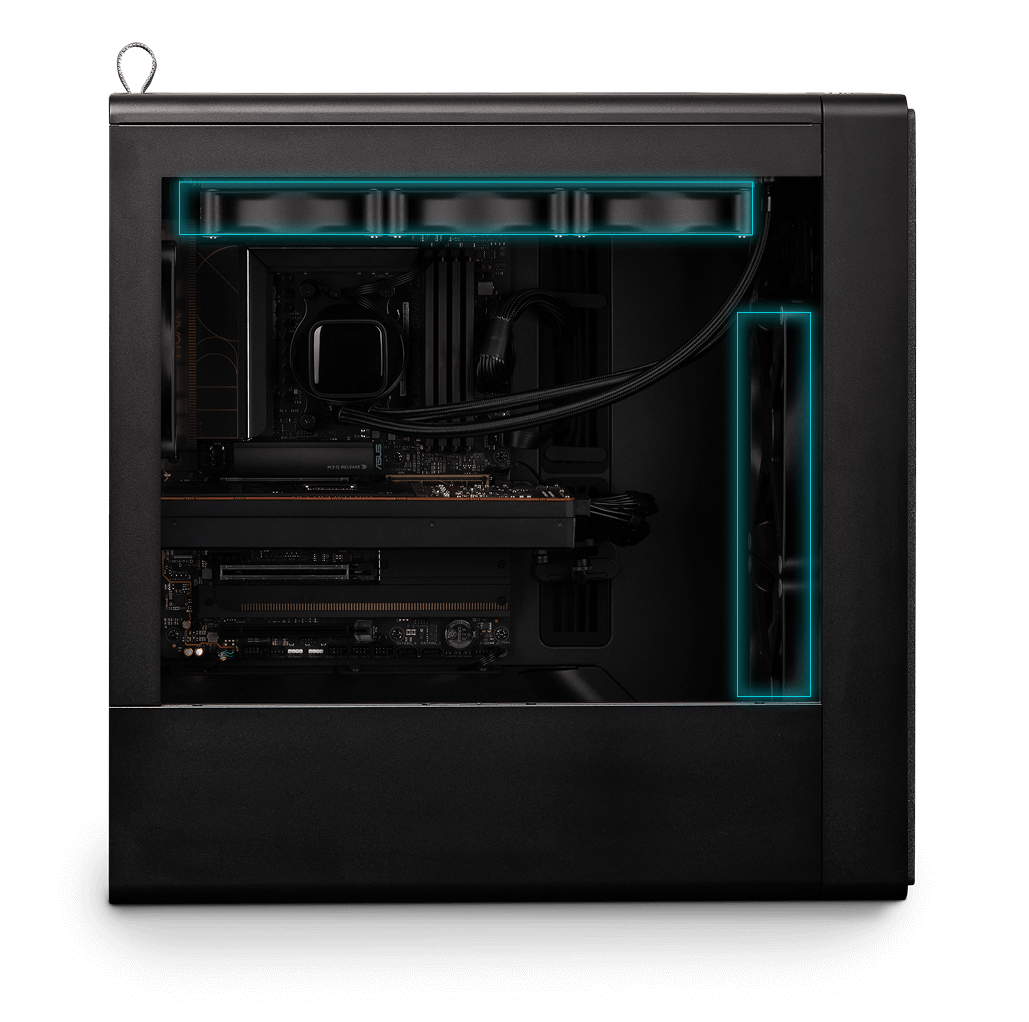

Renderboxes Electron Workstation highlighting airflow

Engineered
airflow

The upright chassis cools components with dual 180 mm intake fans. Hot air exhausts through the top and rear vents.

Overview

Front on view of Renderboxes Electron Early 2026 Workstation
View gallery

Overview

  • Dimensions (W × H × D): 25.4 × 52.3 × 51.5 cm
  • Weight: 18kg (20kg packed)

Technical

  • CPU icon
    AMD Ryzen 9000 Series
  • GPU icon
    NVIDIA RTX (Max 1x)
  • Storage icon
    NVMe Gen 5 M.2 (Max 2x) / U.2 (Max 1x)
  • RAM icon
    DDR5 (Max 256GB)
  • Cooling System icon
    Air/AIO
Configure your Electron Help Me Choose

Primary use

We constantly strive to push the boundaries of what is possible in personal workstation performance. The Electron is a testament to our commitment to excellence. Combining cutting-edge airflow technology, rock-solid stability, and unparalleled reliability, the Electron represents the next level in compact, high-performance power. The Electron is the ultimate choice for those who refuse to settle for anything less than the best with AMD Ryzen CPU configurations.
Electron
Electron
Angled View of Renderboxes Electron Workstation - left
Angled View of Renderboxes Electron Workstation - right
Rear view of Renderboxes Electron Workstation
Renderboxes Electron Workstation

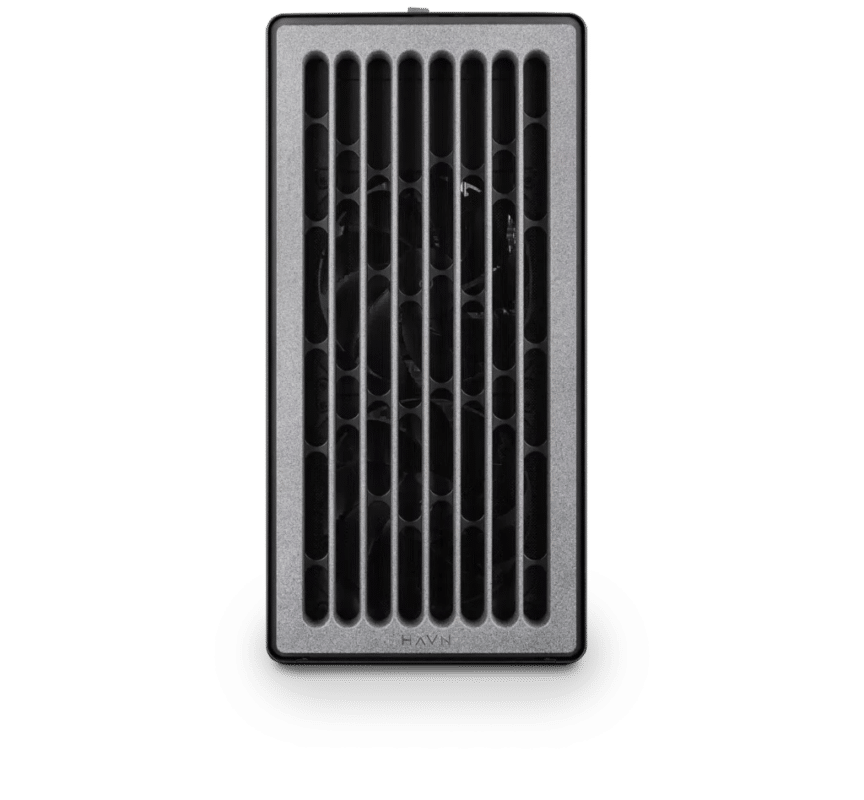

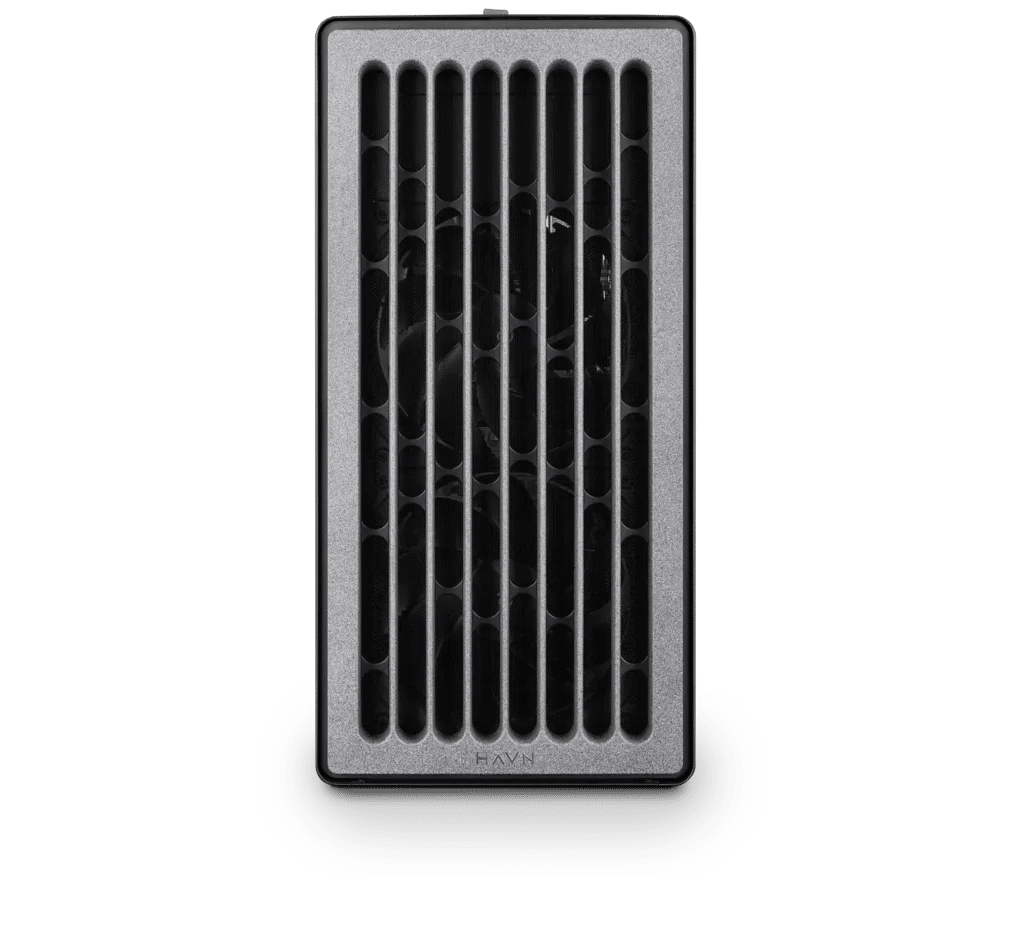

Front on view of Renderboxes Electron Workstation

CPU

AMD Ryzen version

  • AMD Ryzen 9 9950X3D — 4.3 GHz base / up to 5.7 GHz boost
  • AMD Ryzen 9 9950X — 4.3 GHz base / up to 5.7 GHz boost
  • AMD Ryzen 9 9900X3D — 4.4 GHz base / up to 5.5 GHz boost

Intel Core version

  • Core Ultra 9 285K — 3.7 GHz (P-core base) / up to 5.7 GHz (max turbo)
  • Core Ultra 7 265K — 3.9 GHz (P-core base) / up to 5.5 GHz (max turbo)

GPU

  • 1x Full Length PCIe GPU (maximum 4 slot wide, 600 W)

Memory

  • 4x DDR5 DIMM Slots for maximum of 256GB

Storage

AMD Ryzen version

  • 2x x4 M.2 Gen 4.0
  • 2x x4 M.2 Gen 5.0

Intel Core version

  • 3x x4 M.2 Gen 4.0
  • 1x x4 M.2 Gen 5.0
  • 1x x4 U.2 Gen 4.0

System Cooling

  • 4x HAVN 120mm
  • 2x HAVN 180mm
  • 360mm All in one liquid cooler CPU

Connectivity

AMD Ryzen version

  • 7x USB 3.2 Gen 2 Type-A ports
  • 2x USB4 Type-C ports
  • 1x 10GbE LAN
  • 1x 2.5GB LAN
  • 1x USB-C 20Gbps port (Front)
  • WiFi 7 / Bluetooth 5.4

Intel Core version

  • 5x USB 3.2 Gen 2 Type-A ports
  • 1x Thunderbolt 4 Type-C port
  • 1x USB-C 20Gbps port
  • 1x 1GbE IPMI management LAN
  • 2x 2.5GB LAN
  • 1x USB-C 20Gbps port (Front)
  • WiFi 7 / Bluetooth 5.4

Dimensions + Weight

  • W × H × D: 25.4 × 52.3 × 51.5 cm
  • Weight: 18kg (20kg packed)

Power Supply

  • 1200 watts Platinum ATX

Warranty

  • 3 years on all parts
  • 1 year return to base on all labour
  • 3 years technical support via remote/email/telephone
Front view of the Photon Workstation, with a mesh grill and handle on top.

Photon
  • AMD Ryzen 9000 Series
  • NVIDIA RTX PRO / AMD Radeon AI PRO (Max 1x)
  • NVMe Gen 5/4 M.2 (Max 2x)
  • DDR5 (Max 256GB)
  • Air/AIO
BUILD YOUR WORKSTATION
Renderboxes Atom Workstation

Atom
  • AMD Threadripper / Threadripper PRO 9000 Series
  • NVIDIA RTX (Multi GPU Max 4x)
  • NVMe Gen 5 M.2 (Max 3x) / U.2 (Max 2x)
  • DDR5 ECC (Max 2.0TB)
  • Air/AIO
BUILD YOUR WORKSTATION
Front view of the Molecule Air Workstation

Molecule Air
  • Dual AMD EPYC 9005 Turin Series
  • NVIDIA RTX PRO (Multi GPU Max 8x)
  • NVMe Gen 4/5 M.2 / U.2 (Max 4x)
  • DDR5 ECC (Max 3.0TB)
  • Air/AIO
BUILD YOUR WORKSTATION
Renderboxes Electron Workstation

Electron
  • AMD Ryzen 9000 Series
  • NVIDIA RTX (Max 1x)
  • NVMe Gen 5 M.2 (Max 2x) / U.2 (Max 1x)
  • DDR5 (Max 256GB)
  • Air/AIO
BUILD YOUR WORKSTATION
Front view of Renderboxes Nano Pro Workstation

Nano Pro
  • AMD Threadripper PRO 9000 Series
  • NVIDIA RTX (Multi GPU Max 4x)
  • NVMe Gen 4/5 M.2 / U.2 (Max 2x Hotswap)
  • DDR5 ECC (Max 2.0TB)
  • Air/AIO
BUILD YOUR WORKSTATION
Front view of Renderboxes Atom Rack Workstation

Atom Rack
  • AMD Threadripper / Threadripper PRO 9000 Series
  • NVIDIA RTX (Multi GPU Max 4x)
  • NVMe Gen 5 M.2 / U.2 (Max 2x)
  • DDR5 ECC (Max 2.0TB)
  • Air/AIO
BUILD YOUR WORKSTATION

Electron is for technical artists whose work has outgrown ordinary hardware. As datasets grow, viewport lag starts to cost you time. Electron keeps large files fluid. You don’t have to simplify your work to fit your machine.

Configure

Configure your Electron, or talk to our team about building the right system for the way you work.

CONFIGURE BOOK A CALL
