Atom Rack, For performance that scales.

Atom Rack

Workstation power, reimagined.

Atom Rack is a rack-mount Threadripper system with up to two GPUs, built for continuous render and compute work. It sustains boost clocks without thermal throttling. ECC memory support helps protect long jobs from corruption. Flexible high-capacity storage keeps caches, assets and projects close to the GPU. Atom Rack suits studios and facilities that need workstation-class compute at scale. It runs quietly and predictably in a rack, 24/7. And it’s easy to service in day-to-day production.

CONFIGURE Help Me Choose
CPU icon
1
CPU
RAM (Slots) icon
4 + 4*
RAM (Slots)
PCIe slots (16x) icon
4 + 2*
PCIe slots (16x)
NVMe M.2 Drives (Gen 5) icon
4
NVMe M.2 Drives (Gen 5)
U.2 Drives icon
2
U.2 Drives
1
U.2 retimer kit
PCIe slots (8x) icon
1*
PCIe slot (8x)

* With the ASUS Pro WS WRX90E-SAGE SE motherboard. The standard Gigabyte TRX50 AI TOP has fewer.

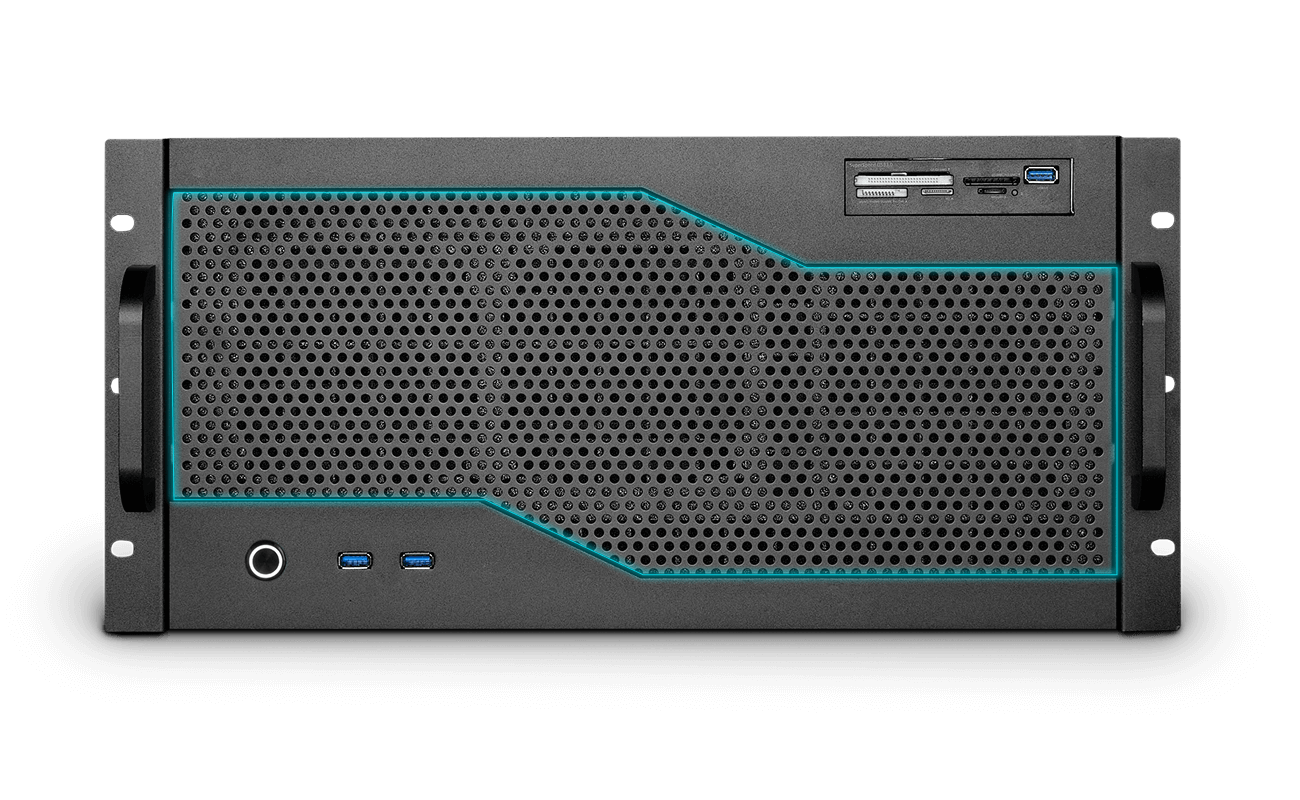

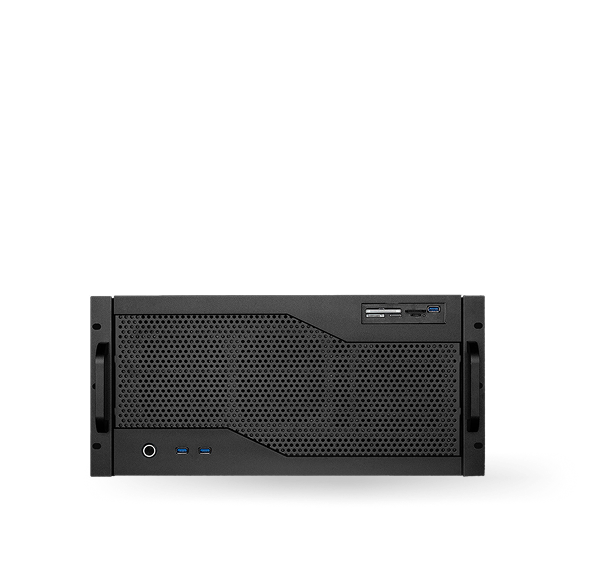

Front view of Renderboxes Atom Rack Workstation

Integrated Cooling & Connectivity

The front holds a 360 mm AIO liquid cooler for the Threadripper. It also has front-panel USB 3 and a multi-format card reader for media ingest.

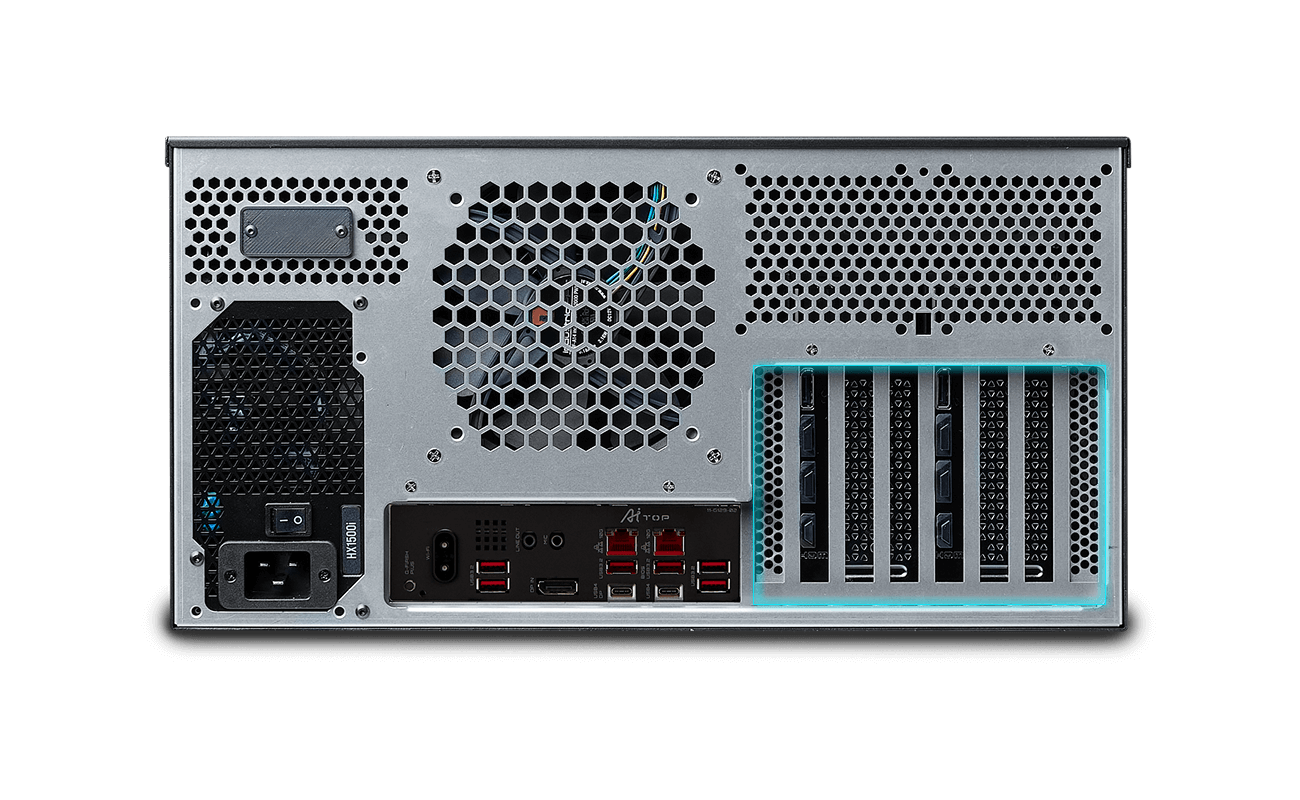

Rear view of Renderboxes Atom Rack Workstation

Universal PCIe GPU Support

The rear takes two full-length, full-height PCIe GPUs of any make or model.

Overview

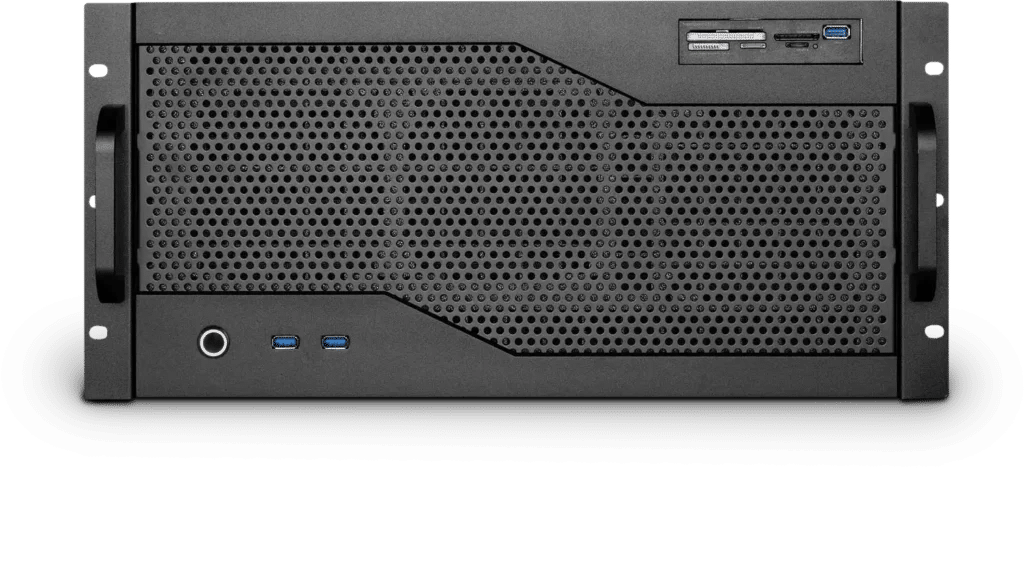

Front on view of Atom Rack
View gallery

Overview

  • Dimensions (W × H × D): 44 × 25 × 53 cm
  • Weight: 28kg (29kg packed)

Technical

  • CPU icon
    AMD Threadripper / Threadripper PRO 9000 Series
  • GPU icon
    NVIDIA RTX (Multi GPU Max 4x)
  • Storage icon
    NVMe Gen 5 M.2 / U.2 (Max 2x)
  • RAM icon
    DDR5 ECC (Max 2.0TB)
  • Cooling System icon
    Air/AIO
Configure your Atom Rack Help Me Choose

Primary use

The Atom Rack is a compact and powerful workstation designed for users who need high-performance computing in a rackmount form factor. With its optimized airflow design, the Atom Rack ensures stable and reliable operation, even under heavy workloads. It features just enough expansion options to keep users ahead of the curve, making it an ideal choice for professionals working in 3D modelling, animation, video editing, and other creative fields.
Atom Rack
Atom Rack

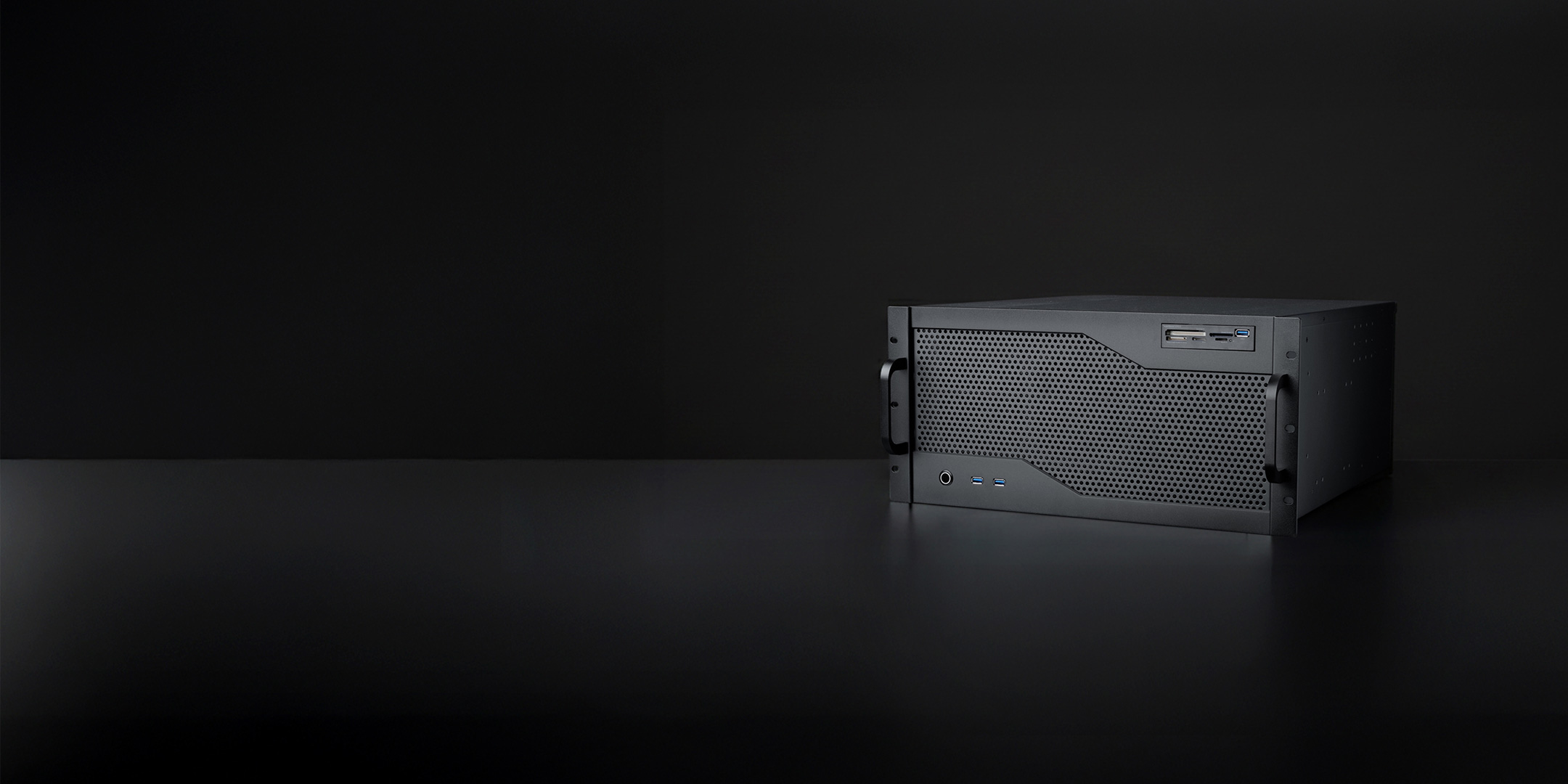

Angled front view of Renderboxes Atom Rack Workstation
Rear view of Renderboxes Atom Rack Workstation - white
Rear view of Renderboxes Atom Rack Workstation - black
Internal view of Renderboxes Atom Rack Workstation

CPU, with Gigabyte TRX50 AI TOP

  • AMD Threadripper 9980X — 3.2 GHz / up to 5.4 GHz
  • AMD Threadripper 9970X — 4.0 GHz / up to 5.4 GHz
  • AMD Threadripper 9960X — 4.2 GHz / up to 5.4 GHz

CPU, with ASUS Pro WS WRX90E-SAGE SE

  • AMD Threadripper PRO 9995WX — 2.5 GHz / up to 5.4 GHz
  • AMD Threadripper PRO 9985WX — 3.2 GHz / up to 5.4 GHz
  • AMD Threadripper PRO 9975WX — 4.0 GHz / up to 5.4 GHz
  • AMD Threadripper PRO 9965WX — 4.2 GHz / up to 5.4 GHz

GPU, with Gigabyte TRX50 AI TOP

  • 2x Full Length PCIe GPU (maximum 4 slot wide, 600 W)

GPU, with ASUS Pro WS WRX90E-SAGE SE

  • 4x Full Length PCIe GPU (maximum two dual-slot or wider)

Memory, with Gigabyte TRX50 AI TOP

  • 4x DDR5 ECC RDIMM Slots (4 channels) for maximum of 1.0TB

Memory, with ASUS Pro WS WRX90E-SAGE SE

  • 8x DDR5 ECC RDIMM Slots (8 channels) for maximum of 2.0TB

Expansion, with Gigabyte TRX50 AI TOP

  • 4x PCIe 5.0 x16

Expansion, with ASUS Pro WS WRX90E-SAGE SE

  • 6x PCIe 5.0 x16
  • 1x PCIe 5.0 x8

Storage

  • 2x x4 U.2 Gen 4.0
  • 3x x4 M.2 Gen 5.0

System Cooling

  • 3x Noctua Industrial 120mm
  • 1x Noctua Industrial 140mm
  • 360mm All in one liquid cooler CPU

Connectivity, with Gigabyte TRX50 AI TOP

  • 6x USB 3.2 Gen 2 Type-A ports
  • 2x USB4/TB Type-C ports
  • 2x 10GbE LAN

Connectivity, with ASUS Pro WS WRX90E-SAGE SE

  • 6x USB 3.2 Gen 2 Type-A ports
  • 2x USB4/TB Type-C ports
  • 2x 10GbE LAN
  • 1x 1GbE IPMI Management LAN

Dimensions + Weight

  • W × H × D: 44 × 25 × 53 cm
  • Weight: 28kg (29kg packed)

Power Supply

  • 2000 watts Platinum ATX

Warranty

  • 3 years on all parts
  • 1 year return to base on all labour
  • 3 years technical support via remote/email/telephone
Front view of the Photon Workstation, with a mesh grill and handle on top.

Photon
  • AMD Ryzen 9000 Series
  • NVIDIA RTX PRO / AMD Radeon AI PRO (Max 1x)
  • NVMe Gen 5/4 M.2 (Max 2x)
  • DDR5 (Max 256GB)
  • Air/AIO
BUILD YOUR WORKSTATION

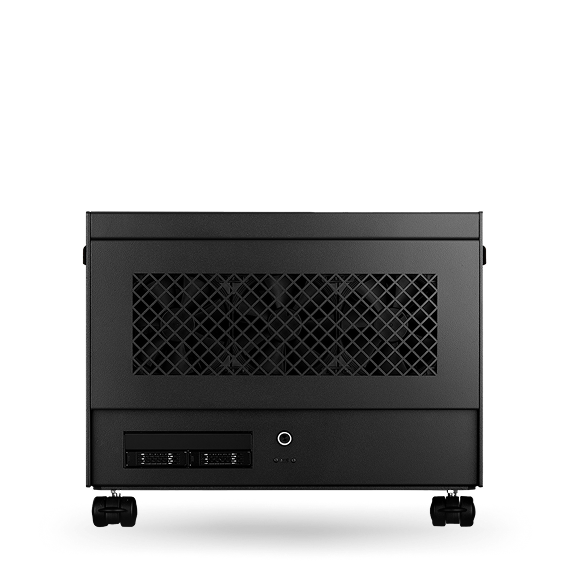

Renderboxes Atom Workstation

Atom
  • AMD Threadripper / Threadripper PRO 9000 Series
  • NVIDIA RTX (Multi GPU Max 4x)
  • NVMe Gen 5 M.2 (Max 3x) / U.2 (Max 2x)
  • DDR5 ECC (Max 2.0TB)
  • Air/AIO
BUILD YOUR WORKSTATION

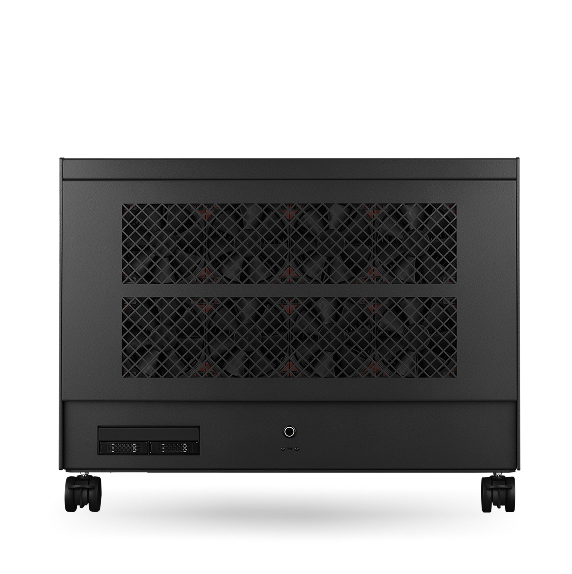

Front view of the Molecule Air Workstation

Molecule Air
  • Dual AMD EPYC 9005 Turin Series
  • NVIDIA RTX PRO (Multi GPU Max 8x)
  • NVMe Gen 4/5 M.2 / U.2 (Max 4x)
  • DDR5 ECC (Max 3.0TB)
  • Air/AIO
BUILD YOUR WORKSTATION

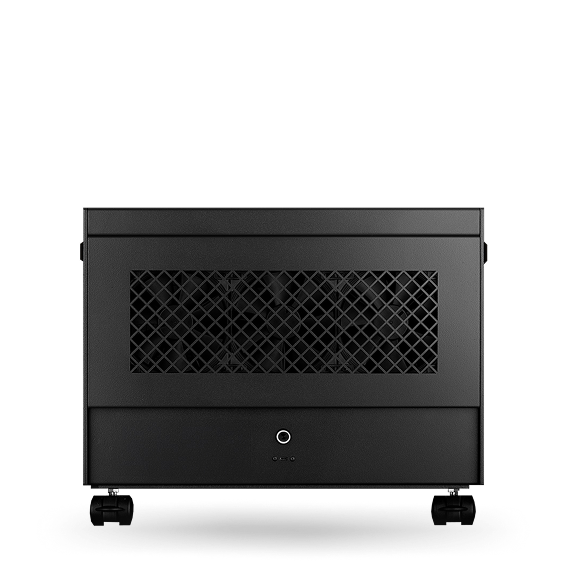

Renderboxes Electron Workstation

Electron
  • AMD Ryzen 9000 Series
  • NVIDIA RTX (Max 1x)
  • NVMe Gen 5 M.2 (Max 2x) / U.2 (Max 1x)
  • DDR5 (Max 256GB)
  • Air/AIO
BUILD YOUR WORKSTATION

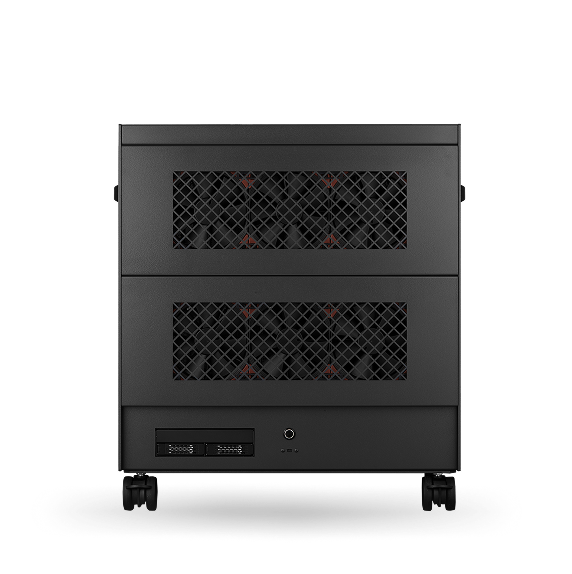

Front view of Renderboxes Nano Pro Workstation

Nano Pro
  • AMD Threadripper PRO 9000 Series
  • NVIDIA RTX (Multi GPU Max 4x)
  • NVMe Gen 4/5 M.2 / U.2 (Max 2x Hotswap)
  • DDR5 ECC (Max 2.0TB)
  • Air/AIO
BUILD YOUR WORKSTATION

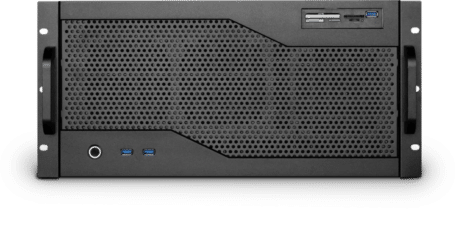

Front view of Renderboxes Atom Rack Workstation

Atom Rack
  • AMD Threadripper / Threadripper PRO 9000 Series
  • NVIDIA RTX (Multi GPU Max 4x)
  • NVMe Gen 5 M.2 / U.2 (Max 2x)
  • DDR5 ECC (Max 2.0TB)
  • Air/AIO
BUILD YOUR WORKSTATION

Atom Rack is for facilities that measure output in frames per hour. In these pipelines, downtime affects everyone downstream. Fan noise can drown out creative conversation. Atom Rack delivers workstation-class power reliably, and quietly enough for people to think.

Configure

Configure your Atom Rack, or talk to our team about building the right system for the way you work.

Configure BOOK A CALL
