Four GPUs.
Under your
desk.

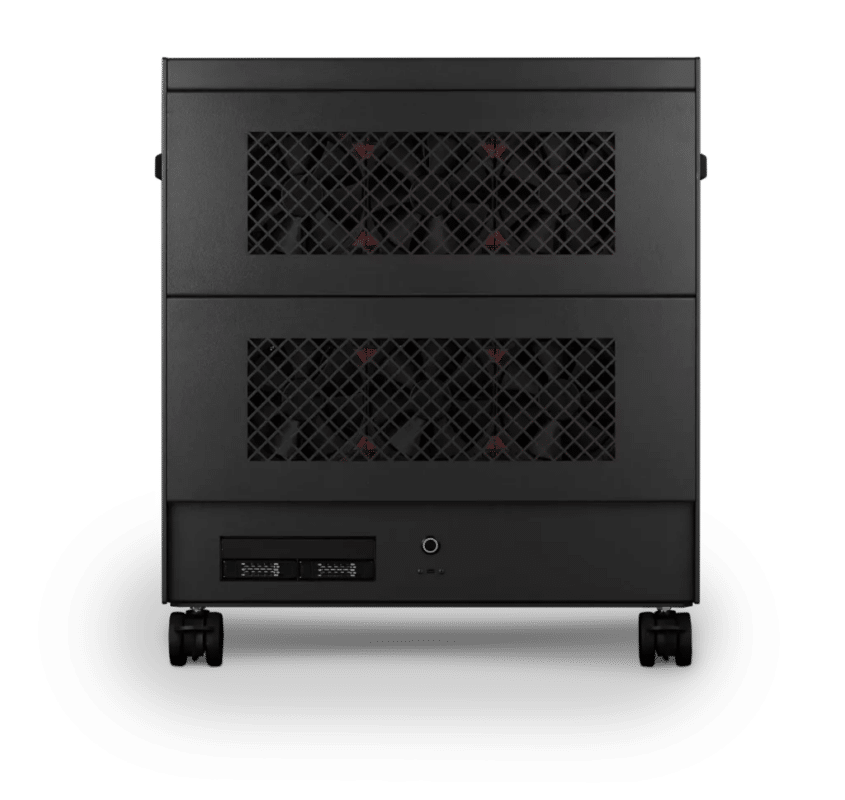

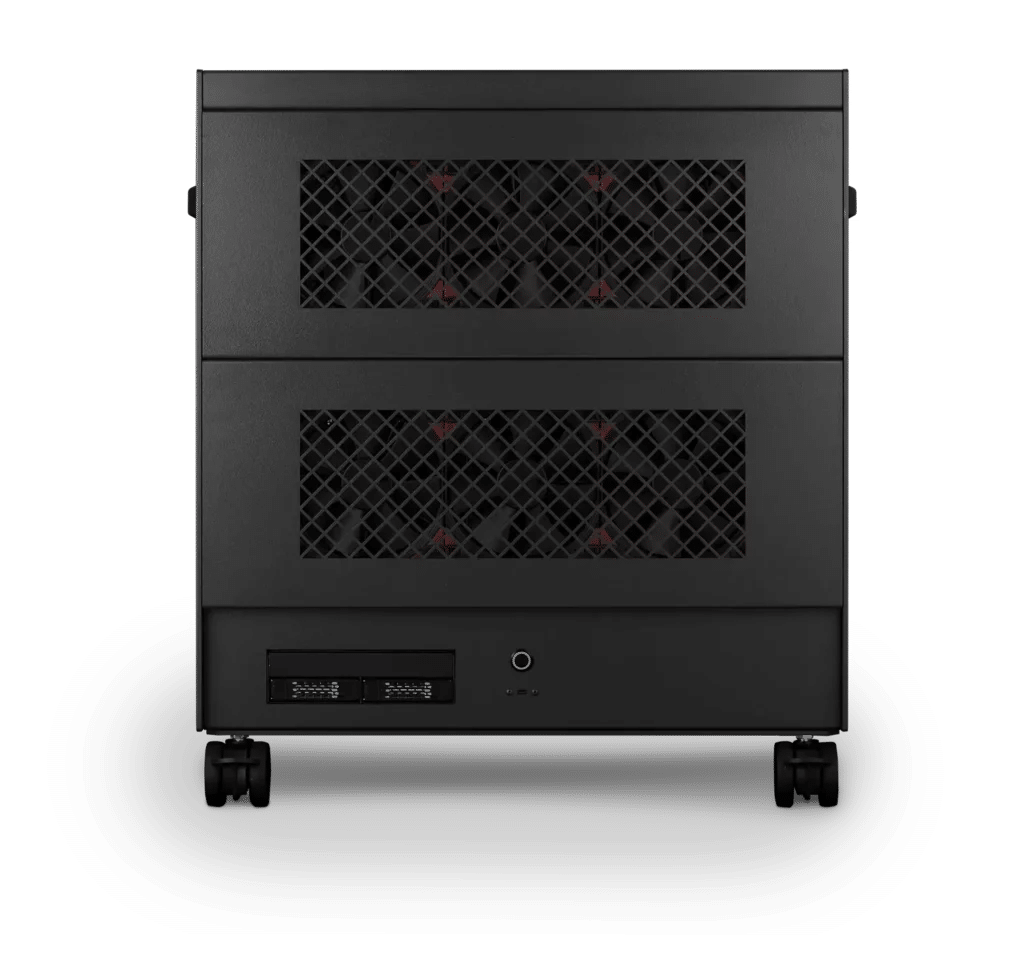

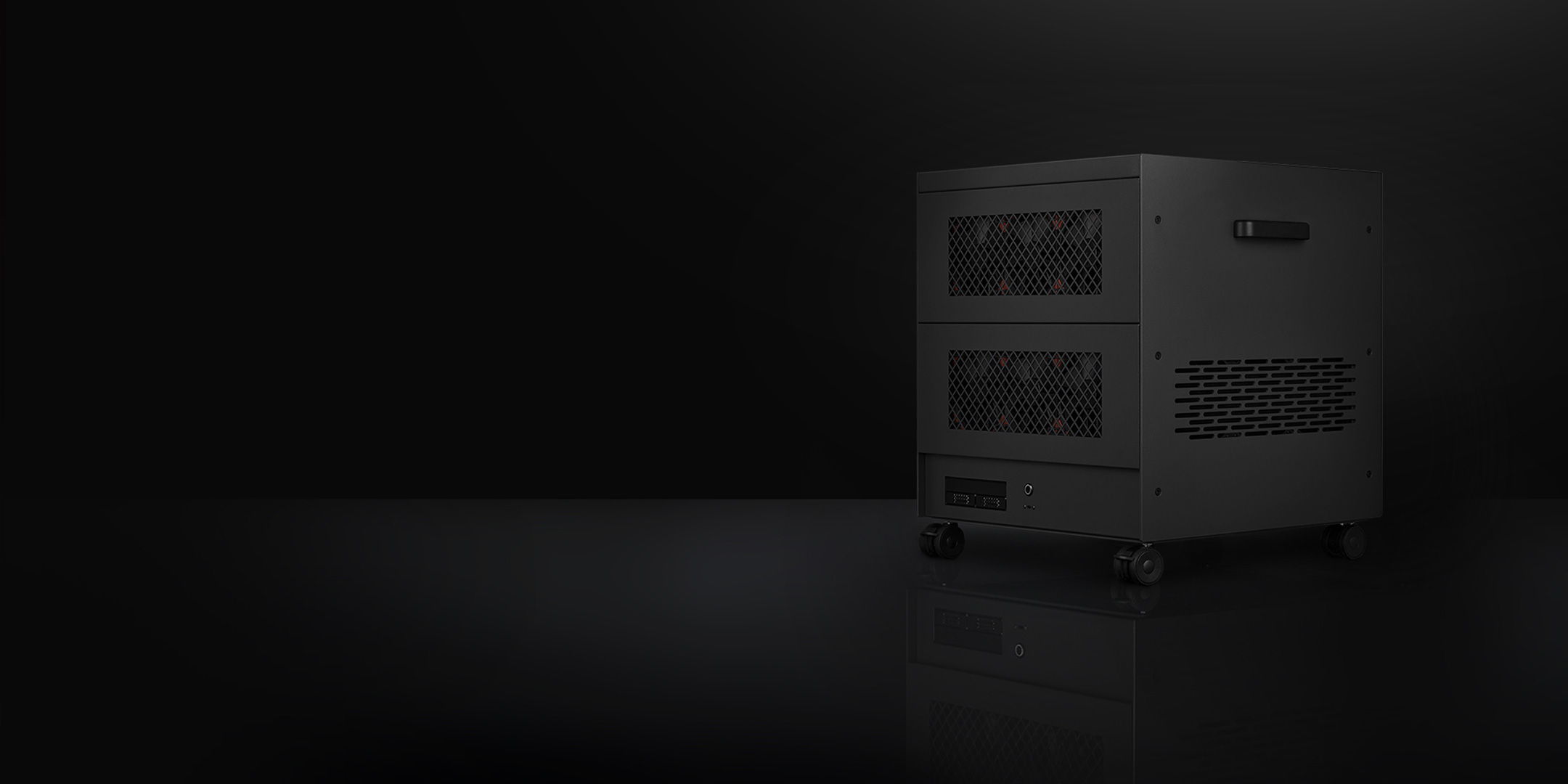

Nano Pro, Maximum power, minimum footprint.
- 1With four NVIDIA RTX PRO 6000 Blackwell GPUs, 96 GB each. Total VRAM depends on the GPUs specified.
Overview
Overview
- Dimensions (W × H × D): 50.4 cm (54.4 cm with handles) × 57.2 × 47.5 cm
- Weight: 35kg (65kg in shipping crate)
Technical
-
AMD Threadripper PRO 9000 Series
-
NVIDIA RTX (Multi GPU Max 4x)
-
NVMe Gen 4/5 M.2 / U.2 (Max 2x Hotswap)
-
DDR5 ECC (Max 2.0TB)
-
Air/AIO
Primary use
The Nano Pro is the world’s only desk-side workstation built to support up to 4 x NVIDIA GeForce RTX 5090 GPUs in a compact tower format. Developed from the foundation of our Atom platform and enhanced for extreme multi-GPU performance, it delivers extraordinary compute density for rendering, AI, simulation, and the most demanding creative workloads.

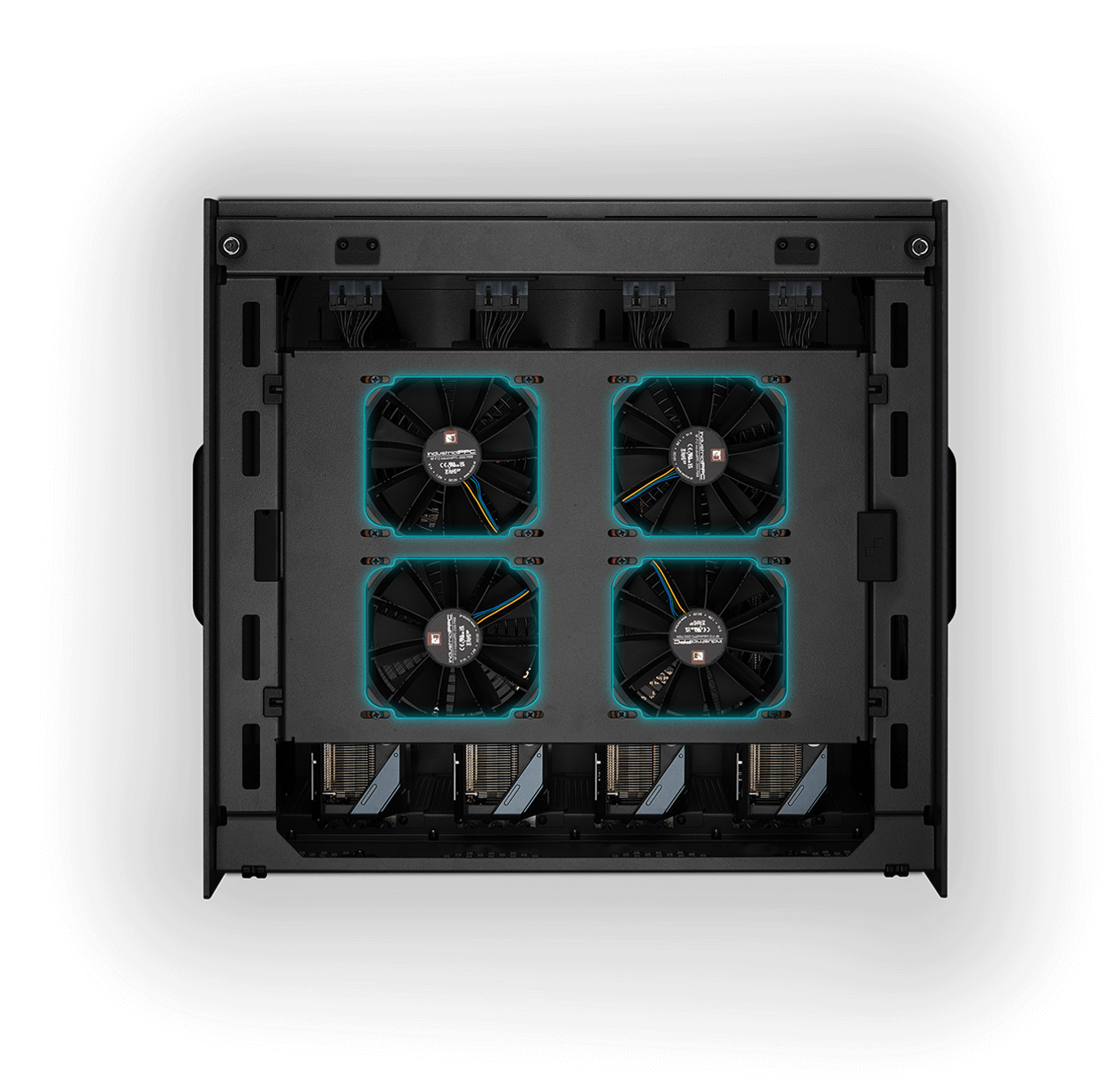

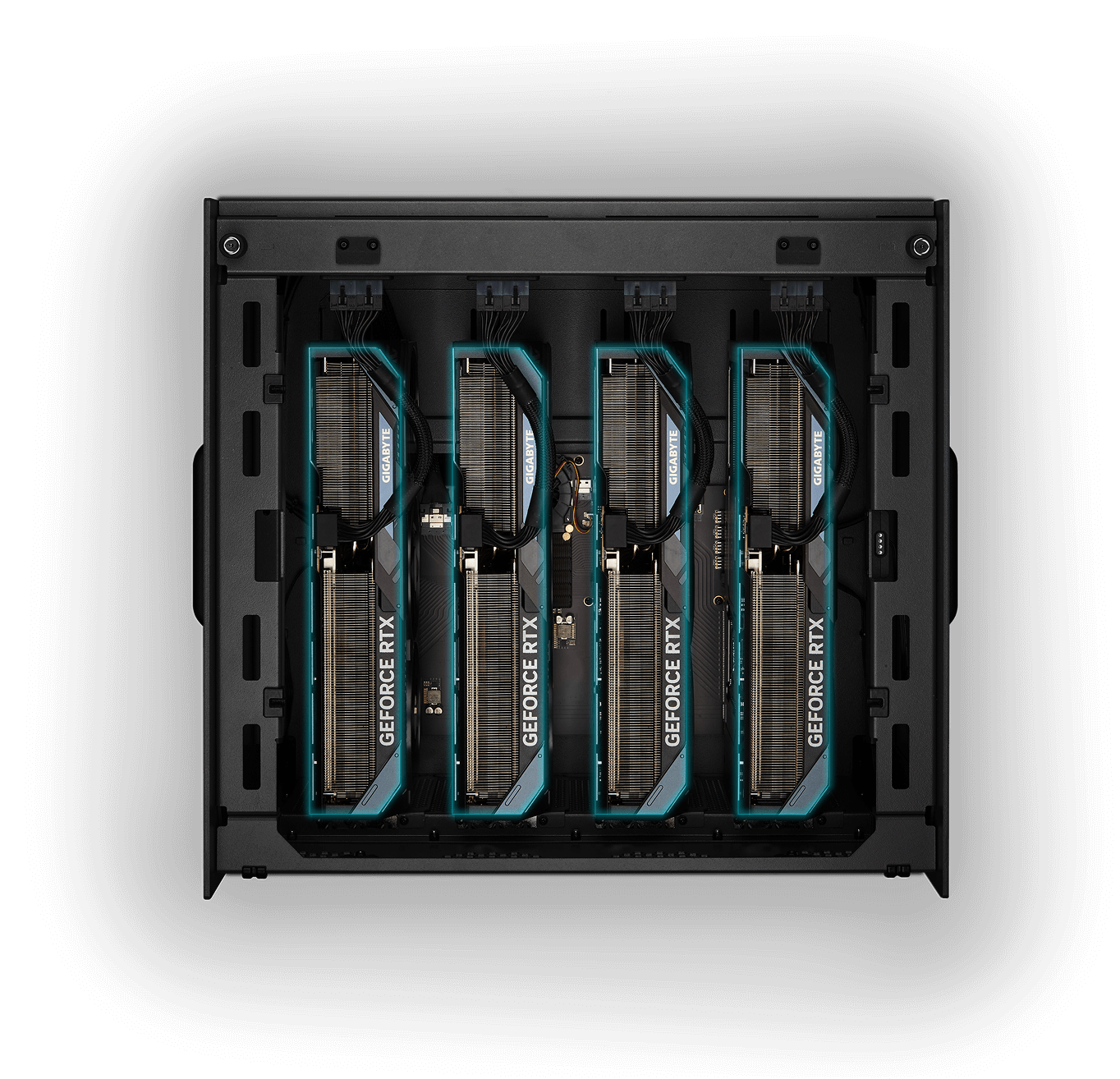

At the core of the Nano Pro is our groundbreaking GPU decoupling architecture, which physically isolates GPU cooling from the CPU and motherboard in the lower half of the chassis. This allows us to sustain immense GPU power in a footprint that remains practical for studios, edit suites, and under-desk deployment. Compact in size but uncompromising in capability, the Nano Pro is designed for users who need maximum performance without moving to a rackmount environment.
CPU
- AMD Threadripper PRO 9995WX — 2.5 GHz / up to 5.4 GHz
- AMD Threadripper PRO 9985WX — 3.2 GHz / up to 5.4 GHz
- AMD Threadripper PRO 9975WX — 4.0 GHz / up to 5.4 GHz
- AMD Threadripper PRO 9965WX — 4.2 GHz / up to 5.4 GHz
- AMD Threadripper PRO 9955WX — 4.5 GHz / up to 5.4 GHz
GPU
- 4x Full Length PCIe GPU (maximum 4 slot wide, 600 W)
Memory
- 8x DDR5 ECC RDIMM Slots, max 2.0TB
Storage
- 2x x4 U.2 Gen 4.0
- 4x x4 M.2 Gen 5.0
System Cooling
- 13x Noctua Industrial 120mm
- 2x Noctua Cromax 80mm
- 360mm All in one liquid cooler CPU
Connectivity
- 6x USB 3.2 Gen 2 Type-A ports
- 2x USB4 Type-C ports
- 2x 10GbE LAN
- 1x 1GbE IPMI Management LAN
- 1x USB-C 20Gbps port
- VGA port
Dimensions + Weight
- W × H × D: 50.4 cm (54.4 cm with handles) × 57.2 × 47.5 cm
- Weight: 35kg (65kg in shipping crate)
Power Supply
- 2x 2000 watts Platinum ATX
Warranty
- 3 years on all parts
- 1 year return to base on all labour
- 3 years technical support via remote/email/telephone
Photon
-
AMD Ryzen 9000 Series -
NVIDIA RTX PRO / AMD Radeon AI PRO (Max 1x)
-
NVMe Gen 5/4 M.2 (Max 2x)
-
DDR5 (Max 256GB) -
Air/AIO
Atom
-
AMD Threadripper / Threadripper PRO 9000 Series
-
NVIDIA RTX (Multi GPU Max 4x)
-
NVMe Gen 5 M.2 (Max 3x) / U.2 (Max 2x)
-
DDR5 ECC (Max 2.0TB)
-
Air/AIO
Molecule Air
-
Dual AMD EPYC 9005 Turin Series
-
NVIDIA RTX PRO (Multi GPU Max 8x)
-
NVMe Gen 4/5 M.2 / U.2 (Max 4x)
-
DDR5 ECC (Max 3.0TB)
-
Air/AIO
Electron
-
AMD Ryzen 9000 Series
-
NVIDIA RTX (Max 1x)
-
NVMe Gen 5 M.2 (Max 2x) / U.2 (Max 1x)
-
DDR5 (Max 256GB)
-
Air/AIO
Nano Pro
-
AMD Threadripper PRO 9000 Series
-
NVIDIA RTX (Multi GPU Max 4x)
-
NVMe Gen 4/5 M.2 / U.2 (Max 2x Hotswap)
-
DDR5 ECC (Max 2.0TB)
-
Air/AIO
Atom Rack
-
AMD Threadripper / Threadripper PRO 9000 Series
-
NVIDIA RTX (Multi GPU Max 4x)
-
NVMe Gen 5 M.2 / U.2 (Max 2x)
-
DDR5 ECC (Max 2.0TB)
-
Air/AIO
Nano Pro asks a different question: why should extreme GPU power need extreme space? Four GPUs used to mean server rooms, messy cables and loud fans.
But GPU-heavy work – rendering, real-time engines, AI – happens at desks, not machine rooms. Nano Pro brings that power back to your desk. With four high-end GPUs, it measures 52–54 dBA at 2 m.
What system is right for you?
Answer a few simple questions and we’ll recommend a system that is right for your creative needs
What system is right for you?
Before you buy
As a rule of thumb, a model needs about 2 GB of GPU memory per billion parameters at 16-bit precision, and about half that at 8-bit. With 384 GB of GPU memory1, the Nano Pro holds a 70-billion-parameter model at full precision with room for long conversations and documents, or a far larger model at 8-bit.
The Nano Pro takes four full-power 600 W GPUs or four 300 W efficiency GPUs, both with 96 GB of memory each. Full-power GPUs give the most performance per card; efficiency GPUs draw half the power.
Yes. It measures 52–54 dBA at 2 m with four GPUs at full load, and runs on two 2000 W power supplies, each on its own standard wall socket. No server room or special power supply is needed.
Yes, with RBOS. The Nano Pro can run up to four virtual workstations, each with a dedicated GPU, its own operating system, USB devices and network port. For four workstations we recommend at least 256 GB of system memory, 64 GB per workstation.
Yes. On Linux, the GPUs exchange data peer to peer over their full PCIe Gen5 x16 links, without going through system memory. That is what allows multi-GPU training and large models split across GPUs to scale.
For a team, usually. You pay for one chassis, CPU platform, memory and power system rather than one per user; GPUs are reallocated rather than left idle; and there is one system to secure, update and support.
It measures 50.4 × 57.2 × 47.5 cm (54.4 cm wide with handles) and weighs 35 kg. It ships in a shipping crate at 65 kg, ready to connect.
Up to 2 TB. The configurator goes up to 1 TB; for 2 TB, contact us.
No. Models and data run on the machine, on your own network.
Three years of parts cover, one year of return-to-base labour and three years of technical support.
