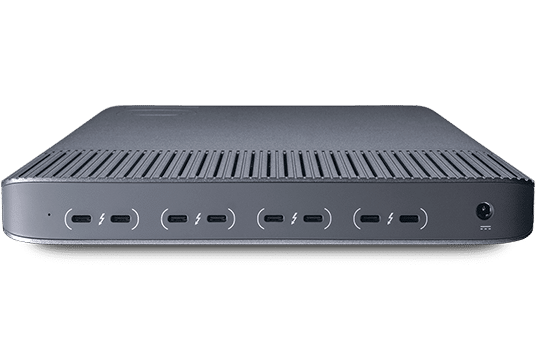

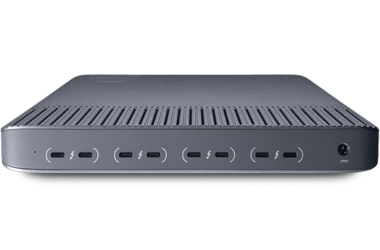

iodyne Pro Data

iodyne Pro Data
View gallery
Product Spec Sheet

Downloads and set-up

More on iodyne with Renderboxes systems: iodyne storage for Renderboxes workstations.

Description

Shared Thunderbolt RAID storage for heavy media. Pro Data reads at up to 5.2 GB/s1, plays up to nine streams of 8K at once2 and connects up to four computers, with RAID-6 protection and XTS-AES-256 encryption throughout.

Dimensions: 15.2cm Height x 38.1cm Width x 53.3cm Depth

Weight: Approx. 5.44kg

Specifications Overview
  • 180W Power Supply Vertical Stand (Dark Space Gray) 2 complimentary 1m Thunderbolt cables
  • 12TB, 24TB, 48TB, 96TB or 192TB
  • Up to 6 devices can be daisy-chained per Thunderbolt port pair. Multiple daisy-chains can be created on computers that provide more than one Thunderbolt host port.
  • Up to 5.2 GB/s read, 2.4 GB/s write (iodyne's maximum, multiple Thunderbolt paths) Renderboxes systems with USB4 or Thunderbolt: two paths from one machine Sustained speed through long transfers (iodyne TruePut)
  • 8× 40Gb Thunderbolt3 ports: 4 upstream to one or more computers 4 downstream to other devices and accessories
  • Up to 9 streams of 8K playback at once Offload up to 19 TB an hour 4× faster than a 10 GbE NAS (iodyne figures)
  • Up to 4 computers at once, with multi-reader sharing Simultaneous Windows, Mac and Linux support
  • Transactional RAID-6 or RAID-0, per container Data checksums and self-healing XTS-AES-256 encryption with a hardware secure enclave Automatic SSD fault management; user-replaceable SSD modules
  • 12 TB model: 10 TB 24 TB: 20 TB 48 TB: 40 TB 96 TB: 80 TB 192 TB: 160 TB
  • macOS 13 or later Windows 10 (21H2) and Windows 11 (22H2 or later) Ubuntu 22.04 or later (kernel 6.8 or later)
  • 1 year, extended to 3 years at no charge when registered with iodyne Cloud Free replacement SSD modules while in warranty
SKU: N/A Categories: Bundle - Storage, Storage Brand: iodyne
iodyne Pro Data

iodyne Pro Data

12TB, 24TB, 48TB, 96TB or 192TB

Up to 6 devices can be daisy-chained per Thunderbolt port pair. Multiple daisy-chains can be created on computers that provide more than one Thunderbolt host port.

Up to 5 GB/s Bandwidth

8× 40Gb Thunderbolt3 ports:
4 upstream to one or more computers
4 downstream to other devices and accessories

2× 1m 40Gb included.
0.3m, 1m, 2m, 5m or 50m 40Gb available

macOS: 13.0+ (Ventura, Sonoma, Sequoia)
Windows: 10 version 21H2, 11 version 22H2+
Linux: Ubuntu 22.04+ (running kernel 6.8-generic or later)

Download iodyne software

180W GaN power adapter, 110-220V 50-60Hz

15.39″ × 10″ × 1.22″, 7.3 lbs
39.1cm × 25.4cm × 3.1cm, 3.3kg

Product can be placed horizontally on desk or vertically in stand. Multiple stands interlock to use desk or DIT cart space more efficiently with expanded configurations. Height including rubber feet on flat surface in horizontal orientation: 1.4″ (3.55cm)

(NEW!) Simultaneous Windows and Mac support
(NEW!) Multi-Reader Sharing
Transactional RAID-6 and RAID-0
Data Checksums and Self-Healing
XTS-AES-256 Encryption with Hardware Secure Enclave
NVMe Thunderbolt Multipathing up to 4× paths
Multi-User connectivity for up to 4× computers
Storage Handoff between connected macOS computers
Dynamic Containers with up to 15 containers
 per device
RAID Levels per-Container with adaptive striping and parity
Automatic SSD Fault Management and RAID Resilvering
Designed for easy Self-Repair of SSD modules

nvm Express
Thunderbolt

1 year standard. Extended to 3 years at no charge upon registering your device with an iodyne Cloud account. Free replacement SSD modules while device is in Warranty.

12T – 6000 TB TBW
24T – 8000 TB TBW
48T – 16000 TB TBW
96T – 32000 TB TBW
192T – 64000 TB TBW

See Endnotes for an explanation of the Terabyte (TB) unit.

SKU RAID-0 RAID-6
12T 12TB 10TB
24T 24TB 20TB
48T 48TB 40TB
96T 96TB 80TB
192T 192TB 160TB

System: 50° to 95°F (10° to 35°C)
Storage: -13° to 113°F (-25° to 45°C)

IEC 62368-1:2014
EN 62368-1:2014 + A11:2017 (US), A11:2018 (Canada), A11:2019 (EU), A11:2020 (Australia & New Zealand), and A11:2021 (Japan)

BIS Registration (India): R-41285684
13252(PART 1):2010/IEC 60950-1:2005

BIS Export Compliant ECCN 5A992 (US)

KC Certification: R-R-IODY-530101-48T

RoHS compliant
REACH compliant
100% recycled pulp packaging

US: FCC 47 CFR Part 15 Subpart B
Canada: ICES-003 Issue 6:2016
European Union:

  • EN 55032:2015 + AC:2016
  • EN 55035:2017
  • EN 61000-3-2:2014
  • EN 61000-3-3:2013

Australia & New Zealand: AS/NZS CISPR 32:2015
Japan: VCCI-CISPR 32:2016
